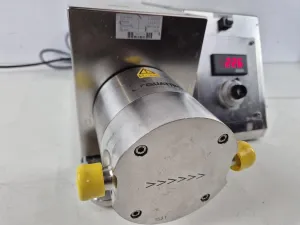

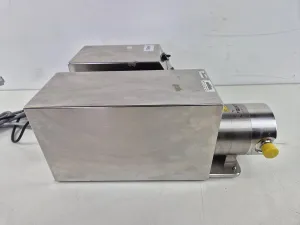

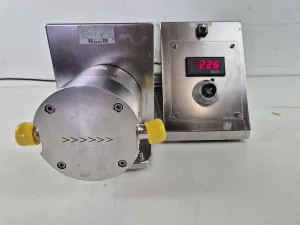

Quattroflow SystemFlow 1000S Quaternary Diaphragm Positive-Displacement Pump

UsedQuattroflowProcess filtersUnited Kingdom

Price on request

In stock

Can't find what you're looking for?

Stock Number
27489.SR7C 27489.SR4C
All 3 specifications
  • Ships to NL
  • Response within 1 hour
  • Warranty available. Buy without worry
  • Support from a scientist

Specifications 3

Brands
Quattroflow
New/Used
Used
Stock Number
27489.SR7C 27489.SR4C

Product description

Quaternary diaphragm pump with flow rate up to 1000 L/h, 6 bar max pressure, designed for sterile fluid handling.

  • Pump Type: Quaternary (four-piston) diaphragm positive-displacement pump
  • Flow Rate: Continuously variable ~25 to 1000 L/h at atmospheric pressure; approx. 750 L/h at 6 bar

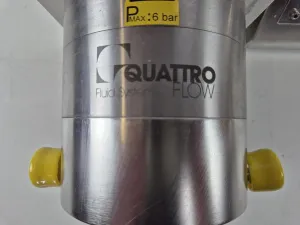

  • Max Pressure: Up to 6 bar; high-pressure variants available on request
  • Drive Mechanism: Four-piston diaphragm actuated by 5° eccentric shaft, max speed 1800 rpm
  • Materials:
  • Pump head: Stainless steel 1.4435 or 1.4539 (optional PEEK)
  • Diaphragm membranes: Santoprene
  • Valve membranes: EPDM
  • Priming and Operation:
  • Self-priming and dry-run capable
  • Seal-less design with no wetted rotating parts
  • Four directional porting allows flexible installation
  • Internal Volume: Approx. 35 mL to minimize dead volume and improve recovery
  • Connections: Standard ¾″ TC (Tri-Clamp) sanitary ferrule; other flange options available
  • Dimensions and Weight:
  • Pump: 523 × 155 × 212 mm; ~23 kg

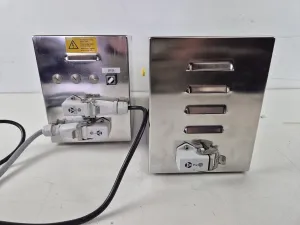

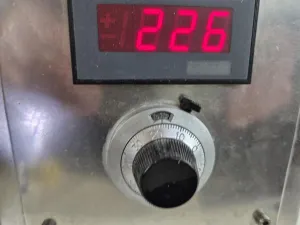

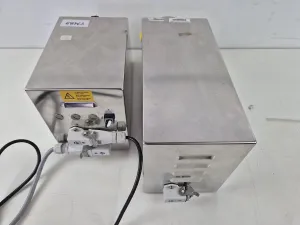

  • Control unit (frequency inverter): 350 × 155 × 212 mm; ~6 kg
  • Electrical Specifications: 230 V AC, 50 Hz, 6.3 A fuse; motor IP54; control box IP53
  • Applications: Suitable for shear-sensitive fluids in filtration (TFF), chromatography, centrifuge feeding, homogenization, aseptic filling, biopharmaceutical and food-grade processing
  • Key Advantages:
  • Low shear and pulsation for fragile biologics
  • Contamination-free with no mechanical seals
  • Robust 370 W motor, easy maintenance with fewer parts
  • Aseptic, sterilizable, self-draining hygienic construction
  • Compact footprint with flexible flow direction and hookup options
