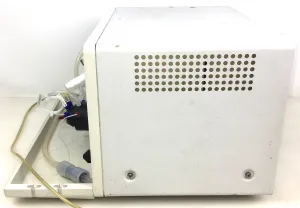

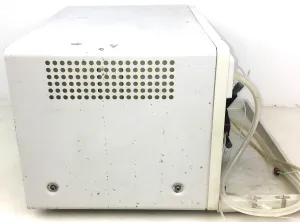

Perkin Elmer FIMS 100 Mercury Analyzer with AS 93plus Autosampler

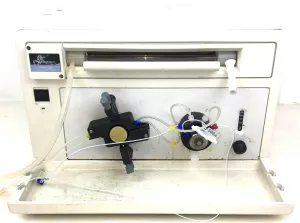

Perkin Elmer FIMS-100 Mercury Analyzer Features:

• Single stepper motor-driven peristaltic pump supporting up to 8 tubing channels (0.13–3.18 mm ID)
• Adjustable pump speed: 30–120 rpm
• High-performance optics with low-pressure Hg lamp and solar-blind detector for enhanced sensitivity
• Automatic baseline offset correction for stable short- and long-term measurements

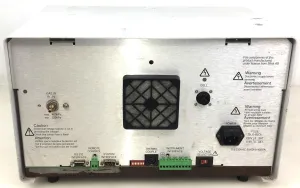

• Built-in power supply and control electronics using Surface Mounted Device (SMD) technology
• FI switching valve with 5 ports and exchangeable sample loops; 500 µL standard loop included
• Software compatibility: WinLab 32, S10 Utility; requires PerkinElmer Syngistix for AA system software and PC (not included)

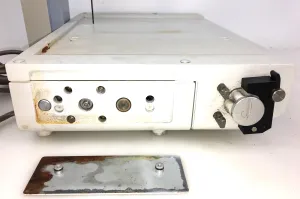

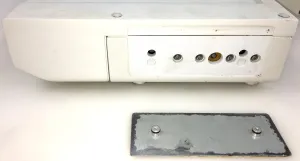

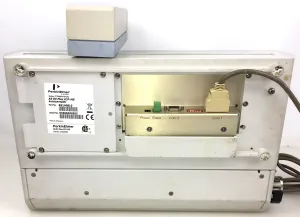

Perkin Elmer AS93 Plus Autosampler Features:

• Computer-controlled multi-purpose sampler for flame and flow-injection AAS, ICP-OES, ICP-MS, and UV spectrometry
• Automates standard and sample introduction through software commands for fully automated analysis

Technical Specifications:

• Spectral resolution: 0.006 nm at 200 nm
• Pump flow rate range: 0.2 mL/min to 5 mL/min
• Compatible with nebulizers handling acid solutions: 50% HCl, HNO3, H2SO4, H3PO4; 20% HF; 30% NaOH
• Operating temperature range: 15 °C to 25 °C

Additional Included Items:

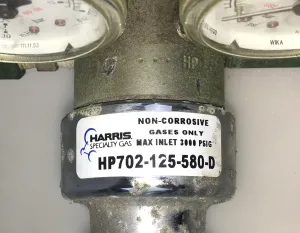

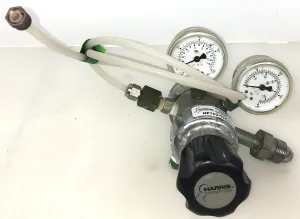

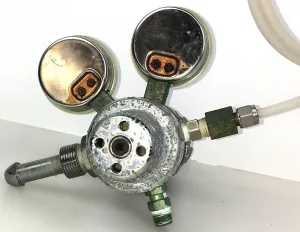

• Harris gas regulator (photo documented)

Notes:

• Compatible AAnalyst 800 AA spectrophotometer available separately
• PC and software options for control not included
• For complete details, see linked literature sources provided by manufacturer.
