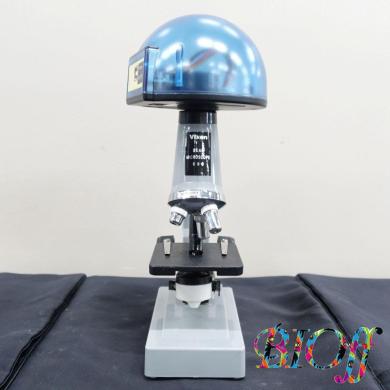

Vixen 600 Dual Microscope X80 X150 X300 with CMOS Camera

The Vixen 600 Dual Microscope is a used digital stereo zoom microscope system for viewing specimens through the optical microscope or displaying observations on a computer using the integrated CMOS camera. It is suitable for general specimen inspection, education, documentation, and basic digital microscopy workflows.

Optical and mechanical specifications

• Total magnification: 80–160×, 150–300×, and 300–600×
• Screen magnification with a 14-inch 4:3 monitor: 414×, 957×, and 1971×
• Screen magnification with reducer lens: 290×, 670×, and 1380×
• Objective magnifications:
• 8×, working distance 14 mm
• 15×, working distance 1.1 mm
• 30×, working distance 0.9 mm
• Eyepiece: 10–20× zoom
• Focus adjustment: Stage vertical movement with coarse-focus handle
• Stage: Fixed rectangular stage
• Image orientation: Inverted

Illumination and power

• Transmitted LED illumination
• Mirror illumination
• Projected LED penlight illumination
• Main unit power: Two AA alkaline batteries, not included
• Penlight power: Two AAA alkaline batteries, not included

CMOS digital camera

• Sensor: Color 1/6-inch CMOS
• Effective resolution: 640 × 480, or 307,200 pixels
• Minimum subject illumination: Approximately 2.5 lux
• Electronic shutter: Automatic, 1/30–1/15,750 second
• Signal-to-noise ratio: 46 dB or higher
• Camera power: Supplied from a computer through the USB cable

Physical specifications

• Dimensions: 21.1 × 8.0 × 13.6 cm (height × width × depth)
• Weight: 580 g

This Vixen digital microscope is designed for computer-assisted specimen observation and image recording. Its broad magnification range and combined transmitted/reflected-style illumination support applications in education, inspection, hobby microscopy, and introductory biological or biotechnology observation. The unit is used and sold as-is; accessories are limited to those listed or shown, with none specified in the listing.
