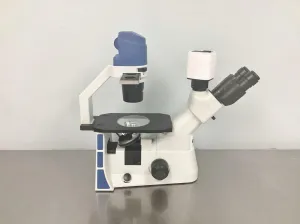

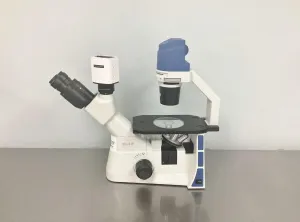

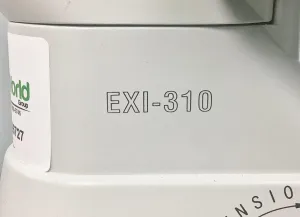

Accu Scope EXI-310 Inverted Phase Contrast Microscope with TrueChrome Metrics Camera

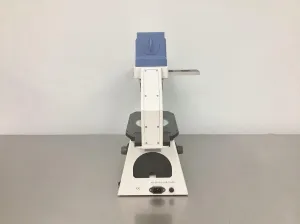

The Accu Scope EXI-310 is a compact inverted phase contrast microscope optimized for live cell observation and tissue culture workflows in biomedical and biotechnology laboratories. It features an infinity-corrected AIS optical system with a 180 mm focal length and supports both brightfield and phase contrast imaging.

Key technical features include:

• Trinocular Siedentopf head with 45° inclination allowing simultaneous viewing and camera attachment.

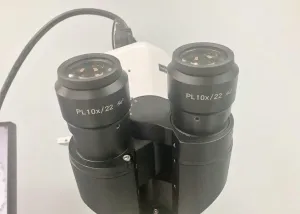

• WF10x/22mm focusable eyepieces providing ergonomic user comfort during extended microscopy sessions.

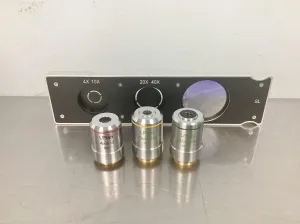

• Side-facing quintuple nosepiece compatible with 4x, 10x, and 20x Plan objectives, suitable for cellular and subcellular imaging.
• Fixed 160 mm x 250 mm stage supporting stable sample placement for routine tissue culture work.

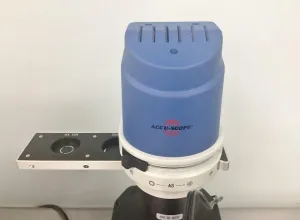

• ELWD condenser with numerical aperture (N.A.) of 0.3 and working distance (W.D.) of 72 mm, optimized for phase contrast illumination techniques.

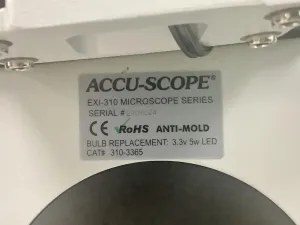

• Variable 5W LED illumination offering energy-efficient, adjustable light intensity critical for precise fluorescence and phase contrast imaging.
• Coaxial coarse and fine focusing with adjustable tension control for smooth, accurate focusing required in molecular diagnostics and bioprocessing applications.

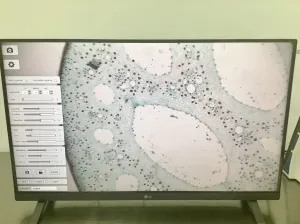

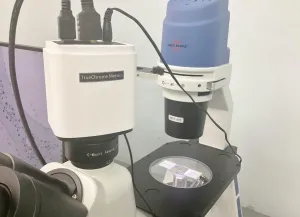

• Incorporates a TrueChrome Metrics HDMI CMOS camera with built-in image acquisition, processing, and measurement software, enabling direct image capture for on-screen visualization without the need for external computers.

This microscope's compact footprint (23 x 12 x 20 inches, 21 lbs) facilitates placement near biosafety cabinets or crowded lab benches, making it ideal for biomanufacturing research environments and synthetic biology workflows. The unit operates on 120V power supply, suitable for standard laboratory electrical infrastructure.

Widely adopted in biotechnology, cell imaging, and clinical diagnostics, the Accu Scope EXI-310 supports applications such as live-cell imaging, fluorescence analysis, and molecular cloning workflows. Its integration of the trinocular head and digital camera enhances data documentation critical in biopharmaceutical production pipelines.

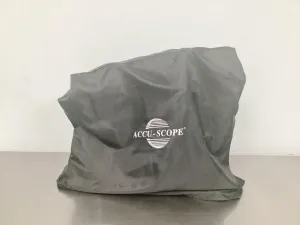

Included accessories: dust cover, communication cables, manual, 120V power cord, and 30-day warranty, ensuring readiness for immediate deployment in research settings.

This instrument is a reliable choice for scientists seeking a compact, versatile inverted microscope capable of supporting diverse applications in biomedical engineering, molecular biology, and synthetic biology research.
