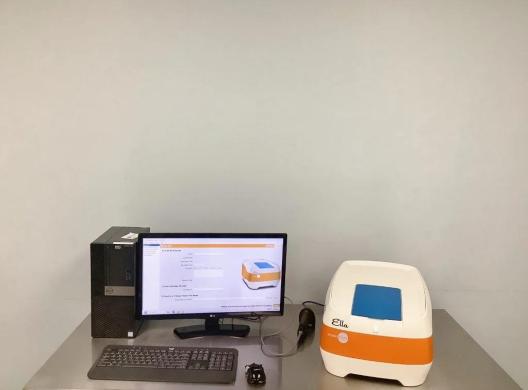

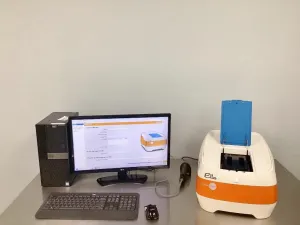

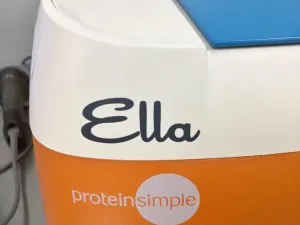

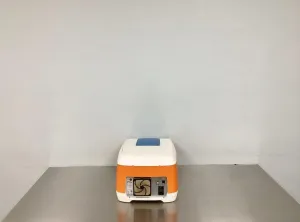

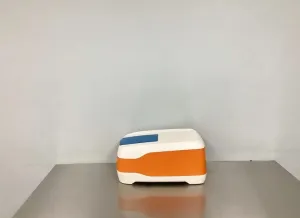

Protein Simple Ella Automated Multiplex Immunoassay Analyzer with Microfluidic Cartridges

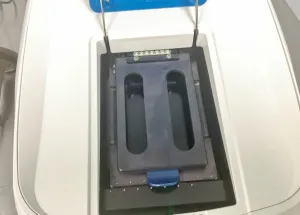

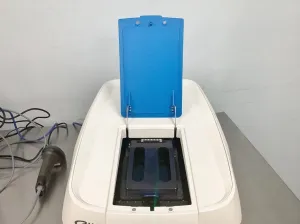

The Protein Simple Ella Immunoassay Analyzer is a fully automated system designed for high-precision multiplex ELISA protein quantification. Utilizing single-use microfluidic cartridges with preloaded reagents and internal triplicate assay sites, this platform eliminates manual plate preparation, washing, and calibration, reducing assay variability—a critical advantage in molecular diagnostics and biotechnological research.

Key technical specifications include:

• Sample volume range: 2.5 µL to 25 µL per analyte, ideal for precious or limited biological samples.
• Multiplex capacity: Supports panels of up to 8 analytes simultaneously, enabling efficient cytokine profiling and biomarker measurement relevant to synthetic biology and bioprocessing workflows.
• Throughput: Processes up to 72 samples per run, producing up to 256 quantitative results with triplicate replicates for statistical accuracy.
• Dynamic range: 3–4 log linear dynamic range with sensitivity below 1 pg/mL, suitable for detecting low-abundance proteins critical in live-cell imaging studies and clinical diagnostics.
• Assay runtime: Approximately 75 minutes per run, customizable up to 80 minutes to accommodate assay variations.
• Data integration: Outputs data in standard formats compatible with LIMS for seamless integration into biomanufacturing quality control pipelines.

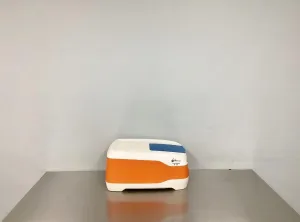

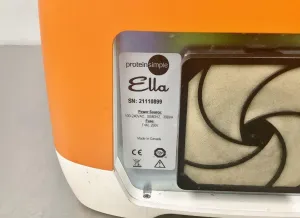

Compact with dimensions 21” x 14” x 11” and weighing 35 lbs, the system operates on 100-240 V at 50/60Hz with 300 VA power consumption.

Widely adopted in biomedical engineering and molecular biology research environments, the Protein Simple Ella analyzer offers reliable, repeatable quantification essential for gene editing validation and molecular cloning workflows. Its microfluidic cartridge technology enhances assay standardization, making it an indispensable tool for researchers focused on precise protein biomarker analysis and multiplex immunoassays in the biotechnology domain.
