Microm HM550 VP Motorized Cryostat with Peltier Cooling and Vacuum Sectioning

UsedMicromCryostatsUnited States

Price on request

In stock

Can't find what you're looking for?

Specimen Temperature Control
+10°C to -50°C
Chamber temperature control
-10°C to -35°C
Fast freezing station depending on the chamber temperature
up to -35°C
Actively cooled fast freezing station with Peltier element
max. up to -60°C
Section Thickness Range
1 to 500 µm
All 17 specifications
  • Ships to NL
  • Response within 1 hour
  • Warranty available. Buy without worry
  • Support from a scientist

Specifications 17

Brands
Microm
New/Used
Used
Specimen Temperature Control
+10°C to -50°C
Chamber temperature control
-10°C to -35°C
Fast freezing station depending on the chamber temperature
up to -35°C
Actively cooled fast freezing station with Peltier element
max. up to -60°C
Section Thickness Range
1 to 500 µm
Fine Section Thickness Range
1 to 100 µm
Resolution
1 µm from 1 to 10 µm 2 µm from 10 to 20 µm 5 µm from 20 to 70 µm 10 µm from 70 to 100 µm
Specimen retraction during return travel
40 µm
Vertical specimen stroke
60 mm
Horizontal specimen movement
28 mm
Coarse Feed
Motorized, graduated, single and continuous
Max Specimen Size
28mm
Dimensions
39x31x48”
Weight
300lbs

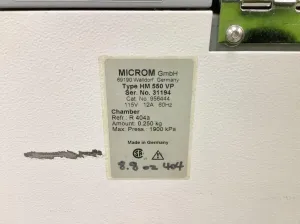

Electrical
115v, 60Hz, 12A

Product description

Cryostat HM550 VP features motorized sectioning, Peltier cooling to -60°C, and vacuum flattening for reproducible tissue slicing.

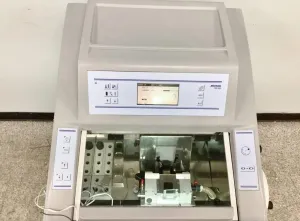

The Microm HM550 VP Cryostat is a high-performance motorized cryostat optimized for clinical diagnostics and advanced biotechnology research, including molecular diagnostics and bioprocessing workflows. It integrates vacuum-assisted section flattening with Peltier cooling technology to maintain precise specimen temperatures from +10°C to -50°C, facilitating consistent tissue sectioning critical for histology and immunohistochemistry.

Key technical specifications include:

  • Chamber temperature range: -10°C to -35°C, with four fast-freezing stations cooled to as low as -60°C via Peltier elements.
  • Section thickness: adjustable from 1 to 500 µm, with fine resolution steps down to 1 µm for detailed cryosectioning, essential for biomanufacturing and synthetic biology applications.
  • Specimen handling: 28 mm horizontal movement, 60 mm vertical stroke, and 40 µm specimen retraction to ensure precise microtome operation.
  • Motorized and manual operation: Electronically controlled motor speeds range from 0 to 250 mm/sec, allowing user selection for optimized protocol adherence in tissue engineering and cell imaging studies.

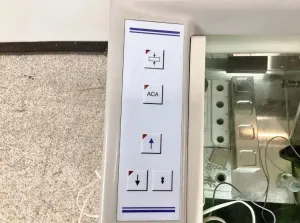

  • Ergonomic design: Operation is possible while seated or standing, with foot or hand activation for operator fatigue reduction during extended sample preparation sessions.

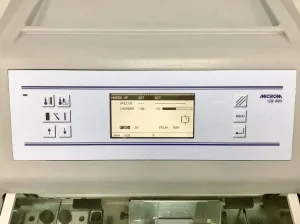

  • Safety and maintenance: Features include a debris removal system, disinfection delivery, emergency stop accessible via foot pedal or hand, and an LCD interface displaying cut parameters—enhancing laboratory safety and process reproducibility.

The HM550 VP is widely utilized in clinical pathology, neuroscience, and biotechnological research areas where precise cryosectioning impacts downstream molecular analysis and gene editing workflows. This cryostat supports advanced applications like live-cell imaging preparations and synthetic biology sample production by delivering consistently uniform frozen sections.

Designed for reliability and ease of maintenance, the Microm HM550 VP Cryostat is an essential instrument for laboratories requiring high-throughput and high-precision cryosectioning in biomedical engineering and molecular cloning environments.
