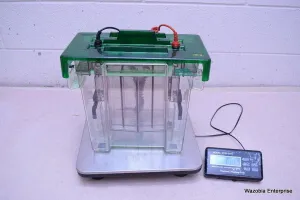

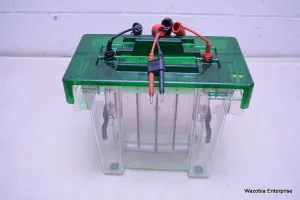

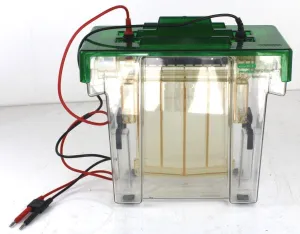

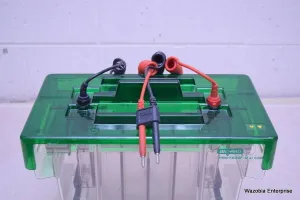

Bio-Rad PROTEAN II xi Cell

UsedBio-RadElectrophoresisNetherlands
Procurable

Not in stock, available to order through our sourcing team

Not in stock, but we can get it for you

We source this model through our supplier network. Request a quote and we'll come back within one hour.

  1. Request a quote
  2. We confirm price and lead time
  3. You approve, we ship to you
Gel Capacity
Up to four slab gels or 16 tube gels simultaneously
Gel Dimensions
160 x 160 mm or 160 x 200 mm
Buffer Capacity
1.5 L
Buffer Volume Requirement
Upper chamber: 60 mL; Lower chamber: 400 mL
Cooling Core Flow Rate
2 L/min
Availability
Procurable
Lead time
Confirmed with your quote
All 20 specifications
  • Ships to NL
  • Response within 1 hour
  • Warranty available. Buy without worry
  • Support from a scientist

Specifications 20

Brands
Bio-Rad
New/Used
Used
Gel Capacity
Up to four slab gels or 16 tube gels simultaneously
Gel Dimensions
160 x 160 mm or 160 x 200 mm
Buffer Capacity
1.5 L
Buffer Volume Requirement
Upper chamber: 60 mL; Lower chamber: 400 mL
Cooling Core Flow Rate
2 L/min
Maximum Coolant Temperature
50 °C
Cooling Core Connection Options
Connectable to tap water or a cooled recirculating bath; can be filled with coolant
Voltage Limit
1,000 V DC
Electrode Material
Platinum, 0.254 mm diameter

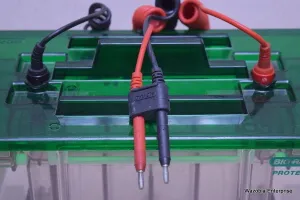

Electrode Leads
Flexible, coiled
External Dimensions
350 x 185 x 300 mm
Weight
11 kg
Cooling Core Material
Molded polysulfone
Lid and Lower Buffer Chamber Material
Molded polycarbonate
Clamps, Casting Stand, and Cams Material
Glass and Teflon®-filled molded polycarbonate
Compatible Electrophoretic Techniques
SDS-PAGE, native PAGE, two-dimensional electrophoresis, agarose gel electrophoresis
Availability
Procurable
Lead time
Confirmed with your quote

Product description

Vertical slab electrophoresis system for SDS-PAGE, native PAGE, and 2-D electrophoresis with cooling and multi-gel capacity.

The Bio-Rad PROTEAN® II xi Cell is a versatile vertical slab electrophoresis system designed for the separation and analysis of proteins and nucleic acids. This instrument accommodates various electrophoretic techniques, including SDS-PAGE, native PAGE, and two-dimensional (2-D) electrophoresis, making it indispensable in proteomics and molecular biology research.

Key features:

  • Flexible gel capacity: Capable of running up to four slab gels or 16 tube gels simultaneously, enhancing throughput for large-scale studies.
  • Central cooling core: Ensures uniform heat distribution across the gel, minimising band distortion and improving resolution.
  • Single-screw sandwich clamps: Facilitate rapid and even assembly of gel sandwiches, reducing the risk of glass plate breakage.
  • Compatibility with 2-D electrophoresis: With optional tube adaptors, the system supports first-dimension isoelectric focusing (IEF) tube gels, seamlessly integrating with second-dimension SDS-PAGE for comprehensive protein analysis.

The PROTEAN II xi Cell is widely utilised in fields such as proteomics, molecular biology, and biotechnology. It is commonly found in university laboratories, biomedical research centres, and biopharmaceutical companies, where precise protein separation is critical for applications like protein profiling, biomarker discovery, and quality control in biomanufacturing.

Introduced in the early 2000s, the PROTEAN II xi Cell remains relevant in modern laboratories due to its reliability and adaptability to various electrophoretic applications.
