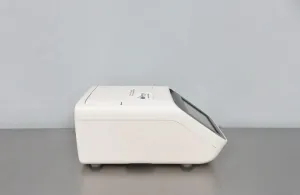

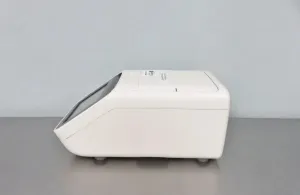

Applied Biosystems SimpliAmp Thermal Cycler with 3-Zone VeriFlex Gradient Block and Touchscreen Interface

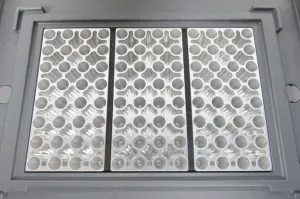

The Applied Biosystems SimpliAmp Thermal Cycler is a benchtop PCR instrument designed for precise and efficient polymerase chain reaction workflows essential in molecular diagnostics, synthetic biology, and biotechnology research. Featuring a 3-zone VeriFlex Peltier block, it provides distinct temperature zones with a 20°C range and 10°C zone-to-zone difference, enabling optimal annealing temperature gradients within a single run. This gradient functionality is critical for optimizing primer binding conditions in gene editing and molecular cloning workflows.

Key technical specifications include:

• PCR volume range: 10 to 100 μL, accommodating standard reaction scales in bioprocessing and molecular biology
• Temperature range: 0 to 100.0°C with ±0.25°C accuracy between 35–99.9°C, suitable for both PCR cycling and incubation steps
• Ramp rates: Max block ramp rate of 4°C/sec and sample ramp rate of 3°C/sec allowing rapid temperature transitions to reduce reaction times
• Temperature uniformity: Less than 0.5°C variance within 30 seconds after reaching 95°C, ensuring consistent amplification results
• Calibration: Traceable to NIST standards, supporting reproducible data integrity in critical research applications

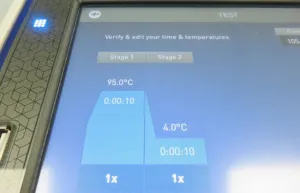

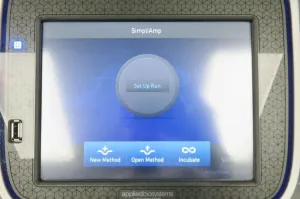

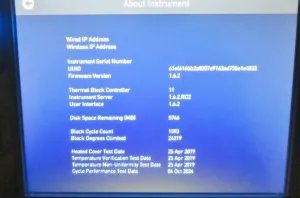

• User Interface: 8-inch full-color touchscreen with intuitive programming, real-time protocol editing, and simulation modes mimicking other instruments, which aids in experiment validation and cross-platform compatibility in neuroscience and clinical diagnostics
• Memory: 2,000 MB internal storage (>1,000 protocols) with USB port for exporting data and protocol backups, streamlining workflow management in high-throughput biomanufacturing labs
• Connectivity: Cloud-enabled operation allows secure remote protocol design, real-time run monitoring, and instrument availability checking via desktop or mobile devices

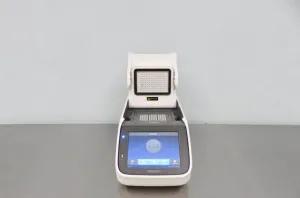

Additional features include an advanced heated lid with automatic opening for sample protection and a compact, lightweight (8.3 kg) footprint (10 x 18 x 9 in) ideal for constrained laboratory spaces. It supports critical biotechnological applications such as gene editing verification, molecular diagnostics assays, and synthetic biology experiments by delivering rapid, reproducible thermal cycling performance.

The SimpliAmp Thermal Cycler is widely adopted in clinical and research laboratories requiring reliable gradient PCR capabilities with enhanced user control and cloud functionality. It is essential for laboratories focusing on live-cell imaging analysis, fluorescence-based assays, and other precision amplification workflows in biopharmaceutical production pipelines.
