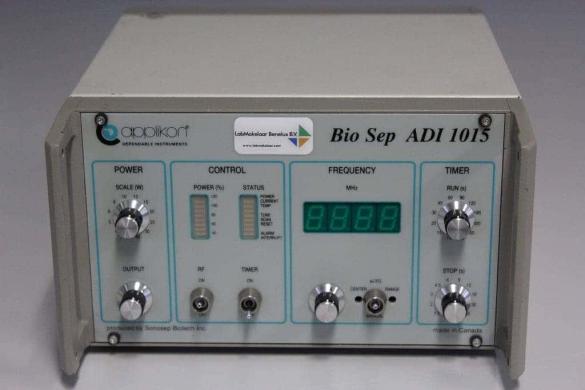

Applikon Bio Sep ADI 1015 Controller Unit for Resonator Frequency Control

Price on request

In stock

Can't find what you're looking for?

  • Ships to NL
  • Response within 1 hour
  • Warranty available. Buy without worry
  • Support from a scientist

Specifications 4

Brands
Applikon Biotechnology
New/Used
Used
Weight
0,0 kg
Warranty
1 month

Used, in good condition

Product description

Frequency generator and amplifier with AFC, 15 W output, timer, for resonator control (2.1–2.15 MHz).

The ADI 1015 controller includes:

  • Frequency generator and power amplifier
  • Automatic frequency control (AFC) system for resonance frequency tracking
  • Adjustable timer controlling run/stop cycles for harvest pump and resonator

Specifications:

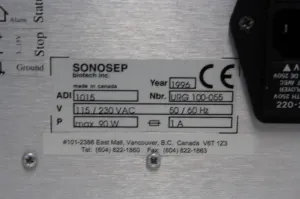

  • Power supply: 110–120 / 220–240 VAC, 50/60 Hz
  • Power consumption: 90 W
  • Frequency range: 2.1 – 2.15 MHz
  • Maximum output power: 15 W
  • Maximum output voltage: 25 Vp
  • Internal timer:
  • Run time adjustable between 10 – 600 seconds
  • Stop time adjustable between 1 – 60 seconds
  • DC source outputs (max. 100 mA):
  • Pin 1: +5 V
  • Pin 2: 0 V reference (isolated from system ground)
  • Pin 3: -5 V
  • Interrupt output (24 VDC/100 mA max.):
  • Pin 4/5 closed: RF on
  • Pin 5/6 closed: RF off
  • Status outputs (24 VDC/100 mA max.):
  • Pin 7/8 closed: OK status
  • Pin 8/9 closed: alarm
  • External stop input:
  • Pin 10/11: 3–15 VDC (2–30 mA) to cause interrupt
  • Case ground: Pin 12

Physical Dimensions:

  • Height x Width x Depth: 140 x 240 x 295 mm
  • Weight: 5.5 kg
