IKA Rocker 2D Digital Shaker

IKA Rocker 2D Digital Shaker

Type of Movement
50 to 1,500 rpm
Speed Range
5 to 80 RPM
Angle Adjustment Range
2.5 to 15°

• Timer: Countdown, adjustable from 1 s to 99h 59min
• Counter: Display of shaking time
• Error Code Display
• Different attachments enable use for a variety ofapplications
• Usable at 4 to 50 °C in incubators
• Easy operation with touch keypad
• Anti-slip rubber mat included
• Suitable for continuous operation
• Shaking diameter: 0 - 15° (angle)
• Speed range: 5 - 80 rpm

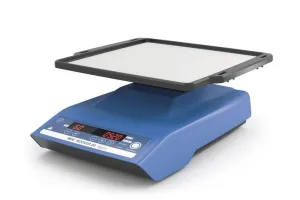

Digital rocking shaker with adjustable speed for smooth mixing tasks. Used for homogeneous mixing in flasks, culture flasks, Petri dishes, and tubes. Even with load and voltage fluctuations, shaking speed remains constant. An adjustable tilt angle ensures optimum adaptation to the particular experimental conditions. The shaker features a timer with a countdown adjustable from 1 second to 99 hours and 59 minutes, and a counter for displaying shaking time. Different attachments enable use for a variety of applications, and it is usable at 4 to 50 °C in incubators. The easy operation with a touch keypad and included anti-slip rubber mat make it suitable for continuous operation, offering a shaking diameter of 0 - 15° and a speed range of 5 - 80 rpm.

• RD 1 universal mat
• Power Cord
• Operator's Guide
• Manufacturer's Documentation
• 2 Year Manufacturer Warranty (+ Additional Free 1 Year Warranty Extension with IKA Registration)

IKA Rocker 2D Digital Shaker Specifications Type of movementrockingPermissible shaking weight (incl. attachment)2 kgPermissible ON time100 %Speed min (adjustable)5 rpmSpeed range0 - 80 rpmSpeed display7 segment LEDSpeed control1 RPM stepsTimeryesTimer display7 segment LEDTime setting min.1 sTime setting max.5999 minOperating modetimer and continuous operation Rocking angle adjustable2.5 - 15 ° Shaking platform stackableyesAltitude (when shaking platform stacked)30 mmDimensions (W x H x D)280 x 150 x 330 mmWeight2.2 kgPermissible ambient temperature4 - 50 °CPermissible relative humidity80 %Protection class according to DIN EN 60529IP 21Voltage100 - 240 VFrequency50/60 HzPower input24 WDC Voltage24 VCurrent consumption1000 mAComparison of ModelsSpecificationRocker 2D BasicRocker 2D DigitalRocker 3D BasicRocker 3D DigitalType of movementrockingrockingtumblingtumblingPermissible shaking weight (incl. attachment)2 kg2 kg2 kg2 kgSpeed range5 - 80 rpm5 - 80 rpmfixed 30 rpm5 - 80 rpmSpeed control1 RPM steps1 RPM stepsN/A1 RPM stepsTimernoyesnoyesTime setting min.N/A1 sN/A1 sTime setting max.N/A5999 minN/A5999 minRocking/Tumbling anglefixed 8°adjustable 2.5 - 15°fixed 8°adjustable 0 - 15°Shaking platform stackableyesyesyesyesDimensions (W x H x D)280 x 150 x 330 mm280 x 150 x 330 mm280 x 165 x 330 mm280 x 185 x 330 mmWeight2.2 kg2.2 kg2.2 kg2.3 kgVoltage100 - 240 V100 - 240 V100 - 240 V100 - 240 V.comparison-table tr td:nth-child(3) { background-color: #fffacd; }
DownloadsTechnical Specification Download
Operator's Manual Download

Request a Formal Quote
