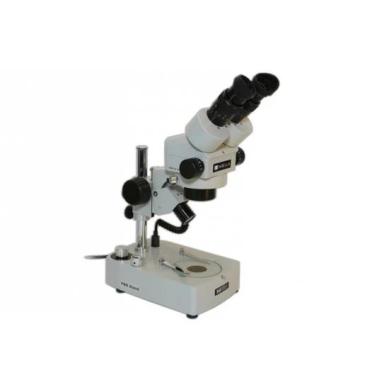

Meiji EMZ-5 Stereo Microscope with PBL LED Pole Stand and MA502 Eyepieces

UsedMeiji TechnoMicroscopesUnited States

From€2,378.33excl. VAT

In stock

Can't find what you're looking for?

Brands
Meiji Techno
New/Used
Used
  • Ships to NL
  • Response within 1 hour
  • Warranty available. Buy without worry
  • Support from a scientist

Product description

Stereo microscope with 6.5:1 zoom, 7x-45x magnification, LED illumination, and customizable working distances.

  • Microscope Head EMZ-5:
  • Zoom ratio: 6.5:1
  • Zoom range: 0.7x to 4.5x
  • Dual graduated zoom knobs with specific markings
  • Magnification range using 10x eyepieces: 7x to 45x
  • Greenough optical system for improved contrast and image flatness
  • Field of view: 32mm to 5.1mm
  • Working distance: 93mm
  • Objective lens: Brass construction
  • Eyetube inclined at 45° and rotatable 360°
  • Interpupillary distance: 54mm to 75mm
  • Dual dioptric adjustment ±5 diopters
  • Optional extended magnification from 2.1x up to 270x and working distances 34mm to 251mm with auxiliary lenses and eyepieces
  • Fits 84.5mm diameter focus holders
  • Wide range of auxiliary lenses available: 0.3x (252mm WD), 0.44x (181mm WD), 0.5x (150mm WD), 0.75x (97mm WD), 1.5x (49mm WD), 2x (34mm WD)
  • Eyepieces MA502:
  • Super Widefield 10X pair
  • Field number: 23.0
  • Reticle mount diameter: 25mm
  • Eye relief: 16mm
  • Focal length: 25mm
  • PBL LED Pole Stand:
  • 100V stand with built-in transmitted and incident LED illumination
  • Independent or simultaneous operation of illuminators
  • Focusing holder with 84.5mm diameter opening
  • Cast aluminum alloy stable base
  • Included accessories: 94.5mm diameter reversible black/white stage plate (MA568), 94.5mm clear glass stage plate (MA569), two stainless steel stage clips (MA593)
  • Compatible with EMZ Series zoom heads, EMT turret series, and EMF fixed series
  • Focus block can raise vertically for special applications
  • Optional 5" extension pillar (MA551) for taller specimens

This configuration is designed for high-resolution observation in semiconductor, medical device, and routine inspection applications, offering versatility through interchangeable lenses and illumination control.
