Thermo Fisher ThermoChill Digital Recirculating Chiller with Centrifugal or Positive Displacement Pump

The Thermo Fisher ThermoChill Recirculating Chillers are designed for precise laboratory temperature control and reliable cooling performance, ideal for biotechnology, molecular diagnostics, and biomedical engineering applications requiring stable fluid circulation. This compact system features simple digital controls and a plug-and-play design, ensuring ease of integration in bioprocessing workflows and gene editing instrument setups.

Key technical features include:

• Temperature range: +5°C to +30°C (+41°F to +86°F) with high stability (±0.1°C), essential for consistent biomanufacturing processes and synthetic biology research.
• Cooling capacity:
• ThermoChill I: 700 W (2391 BTU) with a magnetic drive centrifugal pump delivering 7.6 L/min (2.0 gpm) at 0.7 bar (10 psid), offering low back-pressure flow suited for delicate glassware systems.
• ThermoChill II: 1000 W (3415 BTU) with a positive displacement pump providing 13.6 L/min (3.6 gpm) at 4.1 bar (60 psid), ensuring consistent flow rates under varying pressures critical for molecular biology instrumentation.
• Reservoir capacity: 9.5 liters (2.5 gallons), supporting continuous circulation for extended experimental runs in clinical diagnostics and cell imaging applications.

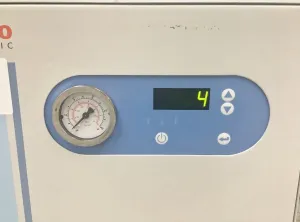

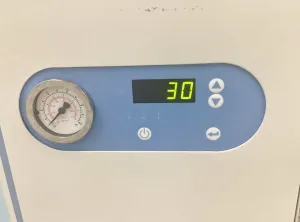

• User interface: Intuitive controller with real-time indicator lights for cooling status, temperature adjustments, and alarm notifications (low/high temperature), facilitating monitoring in biotechnology labs.
• Dimensions: 23 x 18 x 28 inches, and weight of 145 lbs for benchtop placement, optimizing lab footprint while delivering robust performance.
• Power requirements: 115V, 50/60Hz with 6.9A (ThermoChill I) and 15.5A (ThermoChill II), compatible with standard laboratory electrical infrastructure.

This recirculating chiller system supports crucial cooling functions in a range of scientific domains including live-cell imaging, fluorescence analysis, and biopharmaceutical production pipelines. Its reliable temperature regulation and versatile pump options make it widely adopted in synthetic biology research and bioprocessing facilities requiring rigorous thermal management.

Optimized for laboratory environments demanding precise and stable fluid temperature control, the ThermoChill chillers integrate seamlessly with biotechnology instruments used in molecular cloning workflows and synthetic biology experiments.
