Beckman Coulter Modular Centrifuge Inserts for Swinging Bucket Rotors

The Beckman Coulter Centrifuge Inserts provide precision-engineered modular adapters designed for seamless integration with multiple swinging bucket rotors, including GH-3.8, JS-3.0, JS-4.3, JS-5.2, SX-4250, SX-4750, and SX-4750A models. These inserts accommodate a broad range of tube volumes and diameters, optimizing sample processing in biotechnology, molecular diagnostics, and bioprocessing workflows.

Key features and specifications include:

• Tube well capacities spanning from single large-volume vessels to multi-well arrays:
• Tan inserts hold 30 tubes (3–5 mL; max diameter 13 mm)

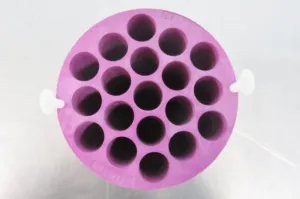

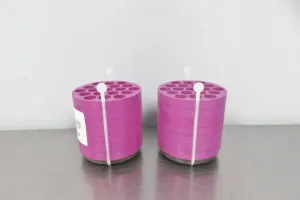

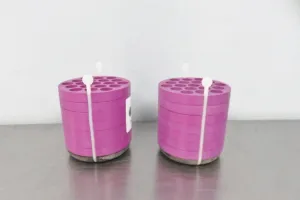

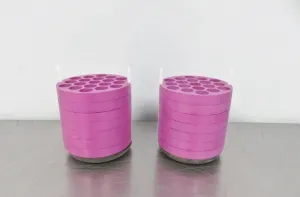

• Purple inserts fit 19 tubes (up to 12 mL; max diameter 16 mm)
• Orange inserts designed for 24 tubes (7–10 mL; max diameter 14 mm)
• Green inserts hold 14 tubes (15–20 mL; max diameter 18 mm)
• Cream color options support conical tubes of 10 mL (20 wells, 13 mm), 15 mL (5 wells, 16 mm), and 50 mL (7 wells, 30 mm)
• Light Purple and Dark Orange inserts facilitate large conical bottles (500 mL and 250 mL)
• Blue Bottle Adapter Sleeves support single large-volume bottles (500–750 mL, 96 mm diameter)
• Light Blue inserts support 37 tubes of 5 mL volume (12 mm diameter)

• Compatibility: Tailored for use with Beckman Coulter’s GH and JS series rotors, as well as specialized SX series swinging bucket rotors
• Stability: Thick rubber bases ensure secure placement and vibration mitigation during centrifugation
• Applications: Ideal for biotechnological research including nucleic acid purification, cell lysis, protein isolation, and biomanufacturing sample preparation
• Material: Durable construction suitable for high-speed centrifugation with precise dimensional tolerances to maintain rotor balance and performance

These inserts are essential accessories for life science laboratories requiring versatile, reliable centrifuge tube handling solutions. They support critical biotechnology applications such as synthetic biology experiments, molecular diagnostics workflows, and biopharmaceutical production pipelines by accommodating diverse sample volumes and tube formats.

Backed by manufacturer warranty and quality inspection, Beckman Coulter inserts optimize centrifuge rotor usage and enhance operational efficiency in clinical diagnostics and academic research environments.
