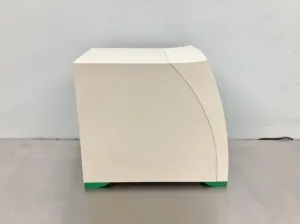

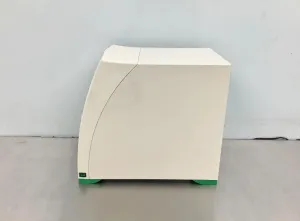

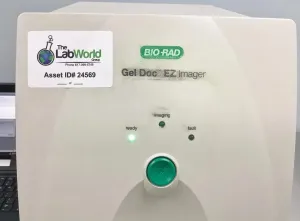

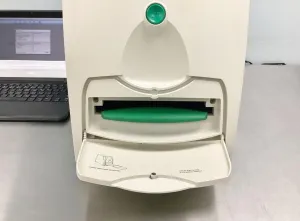

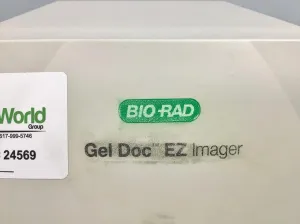

Bio-Rad Gel Doc EZ Imager Automated Gel Documentation and Fluorescence Imaging System

The Bio-Rad Gel Doc EZ Imager is a compact, automated gel documentation system designed for high-quality imaging of nucleic acid and protein gels. Featuring an integrated UV transilluminator (302 nm UVB) and support for multiple illumination modes including trans-UV, trans-white, and fluorescence, it facilitates visualization of ethidium bromide-stained DNA gels and other fluorescent dyes. This system employs a sensitive CCD detector with a resolution of 1392×1040 pixels (1.4 megapixels) and a dynamic range exceeding 3 orders of magnitude, enabling precise quantitation and molecular weight analysis crucial in molecular diagnostics and biotechnology workflows.

Key technical features include:

• Maximum imaging area: 4.4×6.0 inches, accommodating standard gel sizes.

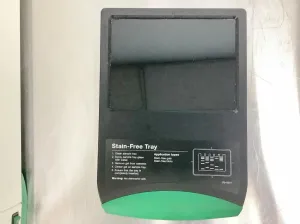

• Illumination control with interchangeable trays: UV (280–400 nm), blue light (430–460 nm), white light, and stain-free gel compatible trays (sold separately).
• Emission filters are tray-based, optimizing signal detection for fluorescent gel staining methods.
• Pixel density of 4,096 gray levels enhances densitometric analysis accuracy.
• Compact dimensions (11×19×6 inches) and lightweight design (15 lbs) suit benchtop use in molecular biology, synthetic biology, and clinical diagnostics laboratories.

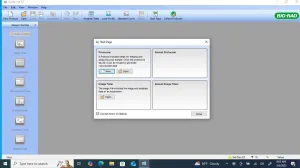

• Generates publication-quality gel images and quantitative reports including Excel exports and PDFs, supporting downstream data analysis for gene editing validation and bioprocessing quality control.

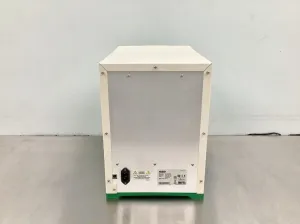

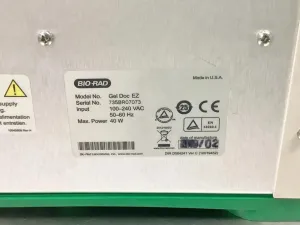

• Electrical requirements: 100-240V, 50/60Hz, 40W for global laboratory compatibility.

Widely adopted in biotechnology research and biopharmaceutical production pipelines, the Bio-Rad Gel Doc EZ Imager is essential for reliable visualization and quantitative analysis of nucleic acid gels, facilitating workflows in molecular cloning, live-cell imaging support assays, and biomanufacturing quality control. Its automation and ease of use reduce operator variability, providing reproducible results critical in regulated environments.
