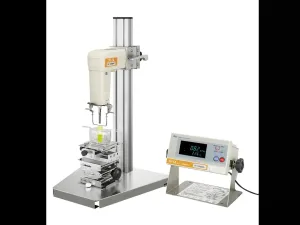

A&D Viscometer SV-1A with Vibrating Tuning Fork Measurement and Temperature Control

The A&D Viscometer SV-1A uses a vibrating tuning fork method for precise viscosity measurement of small-volume samples (minimum 2ml). It is designed for fast, highly accurate viscosity analysis particularly suited for non-Newtonian and volatile products.

• Measurement principle: Vibrating tuning fork
• Sample volume: Minimum 2ml, with cups of 35ml, 13ml, 10ml, and sample tubes of 2ml
• Measurement range: 0.3 to 1,000 mPa.s
• Units: mPa.s, Pa.s, cP, P
• Temperature range: 0 to 160° C
• Measurement speed: First result within 15 seconds, continuous real-time refresh
• Repeatability: ±1% of displayed value
• Sample compatibility: Foaming samples, foam, flowing or agitated samples
• Impact on samples: Low mechanical and negligible thermal impact preserves sample texture and characteristics
• Operation: Push-button start, no configuration needed, easy cleaning
• Calibration: User-accessible 1- or 2-point calibration; simplified automated calibration and adjustment
• Software: WinCT-Viscosity for PC data acquisition, curve display, and archiving viscosity vs. temperature/time

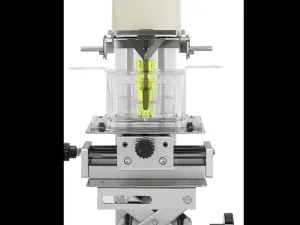

• Temperature control options: Water jacket (AX-SV-37) or other methods for sample temperature regulation

Standard accessories included:

• 10 x 2ml polycarbonate sample tubes with lids
• 5 x 35ml polycarbonate sample cups
• 10 x 2ml glass sample tubes
• 5 x tube holders (3 black, 2 transparent)
• 1 x rack for 2ml tubes
• 1 x polycarbonate water jacket for temperature control
• WinCT-Viscosity software
• RS-232C interface and cable, USB adapter
