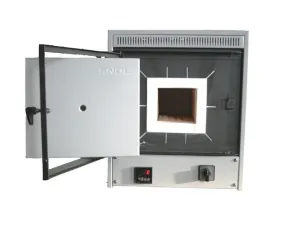

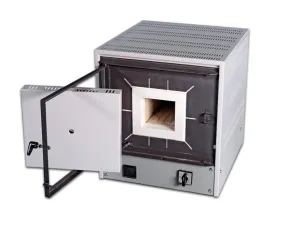

Snol 4 LSC21 Ceramic Chamber Furnace with 4 L chamber and PID temperature control

The Snol 4 LSC21 Ceramic Chamber Furnace is designed for high-temperature applications including ashing, burn-off, and heat treatment with the following specifications:

• Chamber volume: 4 Litres
• Temperature range: +10 to +900°C, 1100°C, 1200°C, and 1300°C
• Chamber internal dimensions (WxDxH): 12 x 29.5 x 11 cm
• Construction: Solid ceramic fiber chamber providing excellent thermal insulation and suitable for low-pressure or vacuum environments
• Heating elements: Embedded on all four sides for uniform temperature control, rapid heating, and effective heat recovery
• Safety: Door safety interlock switch to protect user and sample
• Door design: Sideways opening for improved control and monitoring during operation
• Controller: Digital PID temperature controller (E5CC) with 1 program and 2 steps
• Airflow management: Fan-assisted chimney for smoke and humidity extraction with continuous air exchange inside the chamber
• Optional upgrades:
• Buzzer
• Process observation window (35 mm diameter) rated up to 1100°C
• Overheat protection
• Additional ceramic hearth plates
• Data recorder
• Warranty: 12 months manufacturer warranty

This furnace supports advanced programming options via controller upgrades, such as ramp and start time scheduling. It is available in various external finishes and customizable with optional upgrades to suit specific laboratory requirements.
