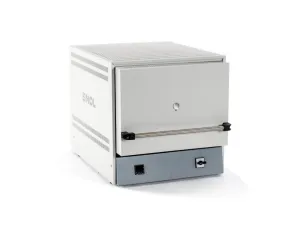

Snol 39/1100 LHM21 Ashing Muffle Furnace with 39L chamber, max 1100°C, fan-assisted chimney

Name: Snol 39/1100 LHM21 Ashing Muffle Furnace with 39L chamber, max 1100°C, fan-assisted chimney
Brand: Snol
SKU: 44629
Availability: InStock

NewSnolProcess ovens / furnacesUnited Kingdom

Price on request

In stock

Can't find what you're looking for?

Chamber Capacity: 39 Litres
Maximum Temperature: 1100°C
Internal Chamber Dimension (W x D x H): 32 x 49.5 x 23 cm
External Finish: Painted, Stainless Steel
Maximum heating-up time (without charge), min.: 50 minutes

All 11 specifications

Ships to NL
Response within 1 hour
Warranty available. Buy without worry
Support from a scientist

Specifications 11

Brands: Snol
New/Used: New
Weight: 75 kg
Dimensions: 94 × 65.5 × 74 cm
Chamber Capacity: 39 Litres
Maximum Temperature: 1100°C

Internal Chamber Dimension (W x D x H): 32 x 49.5 x 23 cm
External Finish: Painted, Stainless Steel
Maximum heating-up time (without charge), min.: 50 minutes
Lead Time: Lead time: Usually 6-8 weeks
Warranty: 1 year (Manufacturer Warranty)

Product description

Ashing muffle furnace with 39L volume, 1100°C max temp, PID controller, fan-assisted chimney, safety interlock.

The Snol 39/1100 LHM21 Ashing Muffle Furnace offers precise high-temperature processing with the following key features:

Chamber Volume: 39 liters
Temperature Range: +10°C to +1100°C
Chamber Dimensions (WxDxH): 65.5 x 94 x 74 cm
Heating Elements: Embedded in four chamber walls for uniform temperature distribution and rapid heating
Insulation: Fiber thermal insulation plates for efficient thermal control
Temperature Control: Digital PID controller (E5CC) with 1 program and 2 steps
Safety Features: Door safety interlock switch to protect user and samples
Door Design: Opens upwards for improved heat retention and space efficiency
Smoke and Humidity Removal: Fan-assisted chimney to exhaust smoke, ensuring a cleaner environment
Exterior Finish Options: Powder painted grey or metal sheet
Upgradeable Options:
Buzzer alarm
Process observation window (ø 35 mm) rated up to 1100°C
Overheat protection
Additional ceramic hearth plates
Data recorder
Warranty: 12 months manufacturer warranty

This furnace is suited for material testing, heat treatment, and precise ashing or burn-off procedures with enhanced temperature uniformity and safety features.

The middle half of the 237 with a price runs from €1,335 to €5,533.
