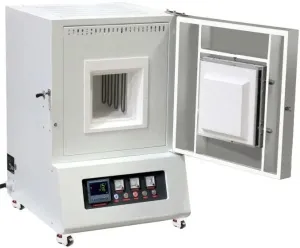

AI CF1200 Programmable Muffle Furnace with Digital Controller and 0.44 Cu-Ft Chamber

The AI CF1200 muffle furnace is a precision thermal processing unit designed for applications in molecular diagnostics, bioprocessing, and biomedical engineering requiring controlled high-temperature environments. Featuring a 0.44 cubic feet chamber (7" x 10" x 7"), this furnace operates from ambient temperature up to 1200°C with a maximum continuous working temperature of 1100°C.

Key technical features include:

• Kanthal spiral wire coil elements embedded in premium Mitsubishi alumina fiber insulation for efficient heat retention and fast thermal response.
• Double-walled steel internal housing significantly reduces heat loss to the exterior surface, improving safety and energy efficiency.
• Advanced microprocessor-based self-tuning PID control system minimizes temperature overshoot, ensuring consistently precise thermal profiles essential for biopharmaceutical production pipelines and synthetic biology research.
• Integrated Eurotherm or Shimaden digital controllers equipped with built-in digital communication ports and USB adapters enable seamless remote monitoring, data logging, and export of test results via PC interface.
• Safety features include overheat protection (automatic shutdown on thermocouple failure or temperature deviation) and power failure protection allowing automatic restart post-outage to prevent process interruptions.
• Built-in ammeter and dual voltmeters assist with real-time troubleshooting and maintenance.
• Utilizes a long-life Type K thermocouple for durable, accurate temperature measurement.
• Complies with ETL tested UL, CSA, and CE standards ensuring laboratory-grade safety and reliability.
• Maximum heating rate is under 15°C (59°F) per minute, suitable for gradual thermal ramping required in heat treatment and molecular cloning workflows.
• 4 kW maximum power output supports stable operation during extended high-temperature cycles.

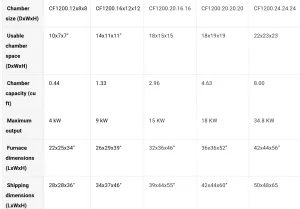

The AI CF1200 is ideal for laboratory environments engaged in cell imaging preparation, material testing, and thermal sterilization processes. Larger chamber sizes and calibration services are available upon inquiry, accommodating diverse research requirements. This muffle furnace is widely adopted in synthetic biology research and is critical equipment for biotechnological process development that depends on reliable, programmable high-temperature furnaces.
