Jenway 3520 Bench-mounted pH/mV/Temperature Meter with Data Logging and GLP Support

The Jenway 3520 is a bench-mounted pH/mV/temperature meter engineered for accurate and simultaneous measurement of hydrogen ion concentration, redox potential, and solution temperature in laboratory and industrial environments. Widely used in biotechnology research, molecular diagnostics, and quality control laboratories, this instrument ensures traceable, high-precision data critical for applications such as molecular cloning workflows, synthetic biology research, and biopharmaceutical production pipelines.

Key Features:

• Measurement capabilities: Simultaneous recording of pH (resolution 0.001), mV (redox potential), and temperature across a broad range (pH: –2.000 to +20.000; Temp: –10 °C to +105 °C).
• Calibration options: Supports 1, 2, or 3-point pH calibration with automatic/manual buffer recognition compliant with DIN, JIS, and NIST standards, essential for GLP-compliant experimental setups.

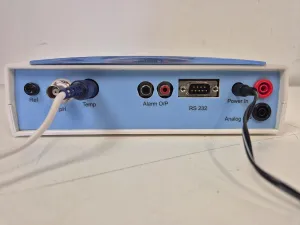

• Data logging and compliance: Built-in data logger stores up to 500 readings; facilitates printing/exporting via analogue, RS-232 serial, or optional IrDA interface. Features GLP functions including calibration reminders, secured user data, and multiple alarms to support regulatory requirements in clinical diagnostics and bioprocessing.
• User interface: Backlit LCD ensures clear display in diverse lab settings. Multi-language menus enhance usability in international research facilities.
• Versatile installation: Designed for bench-top or wall-mounted use with included electrode stand, supporting seamless integration into laboratory workflows.
• Accessories typically included: Glass combination pH electrode, Automatic Temperature Compensation (ATC) probe, buffer sachets (pH 4, 7, 10), electrode holder, and power supply options (230 VAC or 120 VAC).

This meter is popular among molecular biology researchers and clinical scientists requiring reliable electrochemical measurements for precise fluorescence analysis, live-cell imaging pH control, and biomanufacturing process monitoring. Its robust logging and GLP functionality make it critical for consistent quality control and regulatory compliance in biotechnology laboratories.
