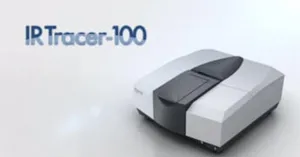

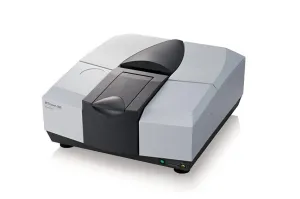

Shimadzu IRTracer-100

UsedShimadzuInfrared / FT-IR spectrometersNetherlands
Procurable

Not in stock, available to order through our sourcing team

Not in stock, but we can get it for you

We source this model through our supplier network. Request a quote and we'll come back within one hour.

  1. Request a quote
  2. We confirm price and lead time
  3. You approve, we ship to you
Wavenumber Range
7,800 to 350 cm⁻¹ (Standard), 12,500 to 240 cm⁻¹ (Optional)
Resolution
0.25, 0.5, 1, 2, 4, 8, 16 cm⁻¹ (Middle/Far IR); 2, 4, 8, 16 cm⁻¹ (Near IR)
Signal-to-Noise Ratio
60,000:1 or higher
Mirror Speed
Standard: 2, 2.8, 5, 9 mm/sec; Optional: 10, 20, 30, 40 mm/sec (Rapid scan)
Light Source
High-energy ceramic for Middle/Far IR (Standard); Tungsten lamp for Near IR (Optional)
Availability
Procurable
Lead time
Confirmed with your quote
All 16 specifications
  • Ships to NL
  • Response within 1 hour
  • Warranty available. Buy without worry
  • Support from a scientist

Specifications 16

Brands
Shimadzu
New/Used
Used
Dimensions
600 x 665 x 295 mm
Weight
47 kg
Wavenumber Range
7,800 to 350 cm⁻¹ (Standard), 12,500 to 240 cm⁻¹ (Optional)
Resolution
0.25, 0.5, 1, 2, 4, 8, 16 cm⁻¹ (Middle/Far IR); 2, 4, 8, 16 cm⁻¹ (Near IR)
Signal-to-Noise Ratio
60,000:1 or higher
Mirror Speed
Standard: 2, 2.8, 5, 9 mm/sec; Optional: 10, 20, 30, 40 mm/sec (Rapid scan)
Light Source
High-energy ceramic for Middle/Far IR (Standard); Tungsten lamp for Near IR (Optional)
Detector
DLATGS detector with temperature control for Middle/Far IR (Standard); MCT (Hg–Cd–Te) detector with liquid nitrogen cooling for Middle/Near IR (Optional); InGaAs detector for Near IR (Optional)
Interferometer
Michelson interferometer (30° incident angle) equipped with Advanced Dynamic Alignment system; Sealed interferometer with Automatic Dehumidifier
Beam Splitter
Germanium-coated KBr for Middle IR (Standard); Germanium-coated CsI for Middle/Far IR (Optional); Silicon-coated CaF₂ for Near IR (Optional)
Sample Handling
Supports transmission, attenuated total reflectance (ATR), diffuse reflectance, and specular reflection methods; Compatible with solids, liquids, and gases
Software
LabSolutions IR software with extensive spectral libraries and advanced search functions
Availability
Procurable
Lead time
Confirmed with your quote

Product description

High-resolution FTIR spectrometer for multi-technique molecular analysis of solids, liquids, and gases.

The Shimadzu FT-IR 3188 is a high-performance Fourier Transform Infrared (FTIR) spectrometer designed for precise structural analysis of organic compounds across various sample types, including solids, liquids, and gases. By measuring the absorption of infrared light, this instrument provides detailed molecular information, making it indispensable in numerous scientific and industrial applications.

Key features:

  • High sensitivity and resolution: Delivers accurate and reliable spectral data for complex sample analysis.
  • Versatile measurement techniques: Supports transmission, attenuated total reflectance (ATR), diffuse reflectance, and specular reflection methods, accommodating diverse sample types.
  • User-friendly software integration: Equipped with LabSolutions IR software, offering extensive spectral libraries and advanced search functions for streamlined data analysis.
  • Robust design: Features a humidity-resistant interferometer with an optional internal dehumidifier, ensuring stable performance in various laboratory environments.

Applications:

  • Biotechnology: Essential for molecular diagnostics, bioprocessing, and synthetic biology research.
  • Pharmaceuticals: Utilised in drug development, quality control, and contaminant analysis.
  • Chemical industry: Employed for material characterisation and process monitoring.
  • Environmental science: Applied in the analysis of pollutants and environmental samples.

Commonly used in:

  • University laboratories
  • Biotechnology research centres
  • Pharmaceutical companies
  • Environmental testing facilities

The Shimadzu FT-IR 3188 remains a relevant and widely adopted instrument in the scientific community, offering advanced capabilities for researchers and professionals seeking precise molecular analysis.
