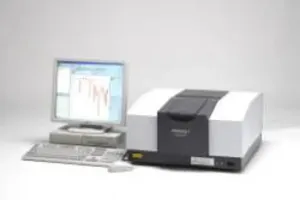

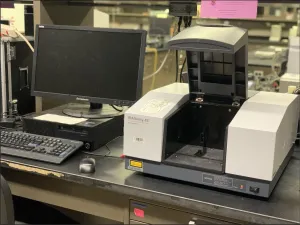

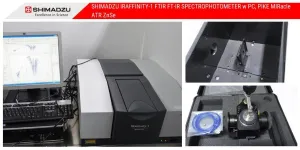

Shimadzu IRAffinity-1S

UsedShimadzuInfrared / FT-IR spectrometersNetherlands
Procurable

Not in stock, available to order through our sourcing team

Not in stock, but we can get it for you

We source this model through our supplier network. Request a quote and we'll come back within one hour.

  1. Request a quote
  2. We confirm price and lead time
  3. You approve, we ship to you
Signal-to-Noise Ratio
20,000:1 or better (peak-to-peak, 4 cm⁻¹ resolution, averaged over 1 minute)
Wavenumber Range
7,800 cm⁻¹ to 350 cm⁻¹
Resolution
0.85 cm⁻¹, 1 cm⁻¹, 2 cm⁻¹, 4 cm⁻¹, 8 cm⁻¹, 16 cm⁻¹
Mirror Speed
2.8 mm/s, 5 mm/s, 9 mm/s
Ambient Temperature Range
15°C to 30°C
Availability
Procurable
Lead time
Confirmed with your quote
All 26 specifications
  • Ships to NL
  • Response within 1 hour
  • Warranty available. Buy without worry
  • Support from a scientist

Specifications 26

Brands
Shimadzu
New/Used
Used
Dimensions
200 mm (W) x 230 mm (D) x 170 mm (H)
Weight
Not specified
Signal-to-Noise Ratio
20,000:1 or better (peak-to-peak, 4 cm⁻¹ resolution, averaged over 1 minute)
Wavenumber Range
7,800 cm⁻¹ to 350 cm⁻¹
Resolution
0.85 cm⁻¹, 1 cm⁻¹, 2 cm⁻¹, 4 cm⁻¹, 8 cm⁻¹, 16 cm⁻¹
Mirror Speed
2.8 mm/s, 5 mm/s, 9 mm/s
Ambient Temperature Range
15°C to 30°C
Ambient Humidity
Less than 70%
Power Supply
AC 100/120/220/230/240 V, 50/60 Hz, 160 VA
Beam Splitter
Germanium-coated KBr plate
Light Source
High brightness ceramic
Interferometer Type
Michelson type with 30° incident angle, dynamic alignment, sealed and desiccated
Optical System
Single beam optics
Detector
Temperature-controlled high-sensitivity DLATGS detector
Data Sampling Method
He-Ne laser
Sample Compartment Dimensions
200 mm (W) x 230 mm (D) x 170 mm (H)
Detector Type
Temperature-controlled high-sensitivity DLATGS detector
Data Processing Functions
Arithmetic operations between spectra and constants, spectral subtraction, peak detection, smoothing, derivative, baseline correction, data correction, normalization, Kubelka-Munk conversion, Kramers-Kronig analysis, ATR correction
Optional Programs
PLS quantitation, curve fitting, mapping, macro platform
Compliance Programs
Compliance with Japanese/European Pharmacopoeia and ASTM standards
GLP/GMP Features
Operation log recording, software protection by username/password, management of user levels
FDA 21 CFR Part 11 Features
Electronic signature, data manipulation history recording, saving of measured interferogram/background spectrum/manipulated spectra
Availability
Procurable
Lead time
Confirmed with your quote

Product description

FTIR-8400S spectrophotometer with 7,800–350 cm⁻¹ range, high S/N ratio, and dynamic alignment system.

The Shimadzu FTIR-8400S is a Fourier Transform Infrared (FTIR) spectrophotometer designed for precise and reproducible spectral analysis across various scientific disciplines. Introduced in the early 2000s, this instrument has been widely adopted in fields such as biotechnology, pharmaceutical research, and materials science.

Key features include:

  • Dynamic Alignment System: Automatically maintains optimal interferometer alignment, ensuring consistent and high-quality spectra without manual adjustments.
  • High Signal-to-Noise Ratio: Achieves a peak-to-peak S/N ratio of 20,000:1 or better, facilitating the detection of subtle spectral features.
  • Broad Spectral Range: Covers wavenumbers from 7,800 to 350 cm⁻¹, accommodating a wide array of sample types.
  • User-Friendly Software: Integrated with IRsolution software, offering comprehensive data processing functions and compliance with regulatory standards such as FDA 21 CFR Part 11.

The FTIR-8400S is particularly valuable in biotechnology applications, including protein structure analysis, nucleic acid characterization, and biomaterial assessment. Its precision and reliability make it a staple in university laboratories, biomedical research centres, and pharmaceutical quality control departments.

Although the FTIR-8400S is now considered a historical model and is no longer in production, it remains in use in various laboratories due to its robust performance and enduring reliability.
