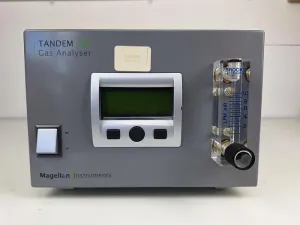

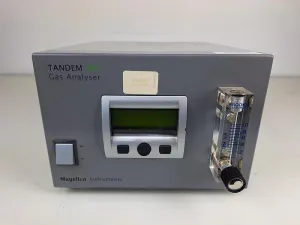

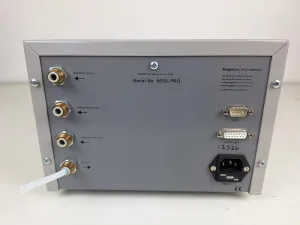

Magellan Instruments Tandem Pro Gas Analyser

This listing is for a Magellan Instruments Tandem Pro Gas Analyser, fully operational and ready for immediate deployment. The Magellan Instruments Tandem Pro Gas Analyzer is a comprehensive O2 and CO2 gas measuring device. Equipped with an internal gas pump and a programmable display, this PRO system includes calibration functions, error reporting, and dual 4-20mA outputs. It also features an RS232 output for seamless integration into control systems.

Benefits include enhanced understanding of cellular and process behavior, online physiological state measurement, and accurate scale-up and scale-down predictions. It supports detailed batch variation and anomaly analysis, metabolic flux analysis, and mass-balance calculations. The analyzer ensures accurate fed-batch control with metabolic activity-based feeding and provides dedicated, continuous, standard signals for all reactors, allowing real-time calculations of RQ, CER, OUR, growth rate, and KLa.

It is compatible with any reactor size ranging from 250ml to 100m3, with 0-10V and 4-20mA outputs plus RS232 on both the PRO and Multiplex versions.

Specifications:

• CO2 Measurement: Infrared Absorption
• Range: 0-5%, 0-10%, 0-20%
• Resolution: 0.01%
• Accuracy: ±2% of full scale
• Drift: <0.05% / month full scale
• Operating Temperature: 0 – 45°C
• O2 Measurement: Electrochemical
• Range: 0-30%, 0-50%, 0-100%
• Resolution: 0.01%
• Accuracy: ±2% of full scale
• Drift: <0.05% / month full scale
• Operating Temperature: 0 – 45°C
• Temp. Compensation: 0.02%/°C
• T90 Response Rate: <50 secs for CO2, <10 secs for O2
