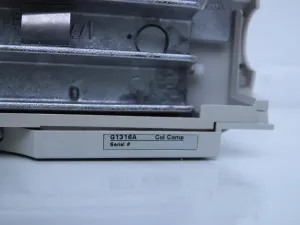

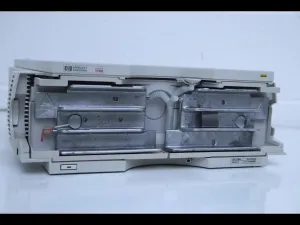

Agilent G1316A COLCOM Column Compartment with Temperature Control

The Agilent G1316A COLCOM Column Compartment is designed for precise temperature control in chromatography applications. Key features include:

• Temperature Range: 10°C below ambient to 80°C
• Temperature Stability: ±0.15°C ensuring reproducible retention times
• Column Capacity: Accommodates up to three columns of 30 cm length each
• Warm-Up/Cool-Down Time: Approximately 5 minutes from ambient to 40°C
• Dead Volume: Minimised to 3 μl on the left-hand side (LHS) and 6 μl on the right-hand side (RHS) to optimise system performance
• Heating Technology: Peltier element provides both heating and cooling
• Safety Features: Leak detection and safe leak handling mechanisms to prevent damage and ensure reliable operation

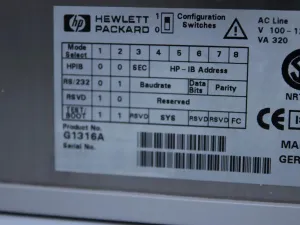

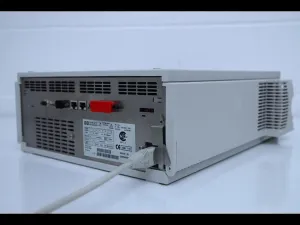

• Communication Interfaces: Supports Controller-Area Network (CAN), GPIB, RS232C, and APG Remote interfaces for system integration
• Design: Stackable unit facilitating flexible system configuration

This unit is optimized for rigorous temperature control to meet demanding retention time reproducibility requirements in chromatographic analyses.
