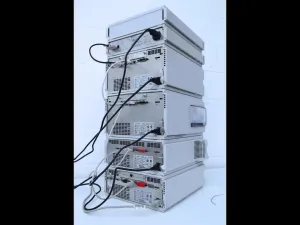

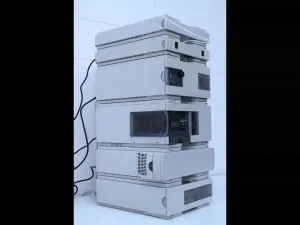

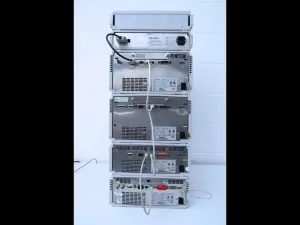

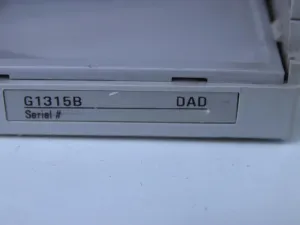

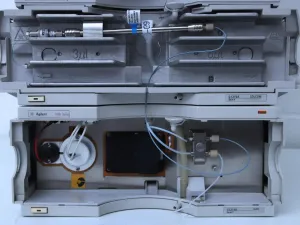

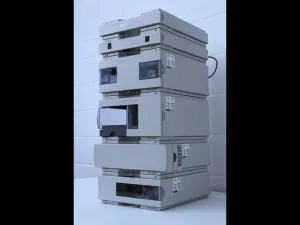

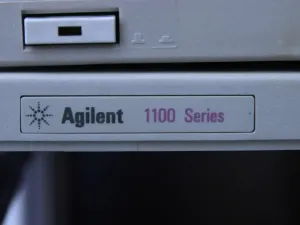

Agilent 1100 Series HPLC System with Degasser, DAD, Autosampler, Binary Pump, and Column Compartment

The Agilent 1100 Series HPLC System includes the following components:

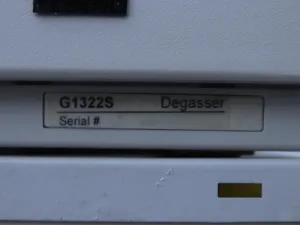

• G1322S Degasser
• Four-channel vacuum system removes dissolved gases
• Maximum flow rate: 10 ml/min
• Internal volume per channel: 12 ml
• Solvent-contact materials: PTFE & PEEK
• Same specifications as G1322A model

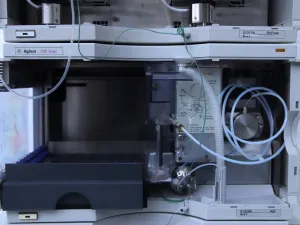

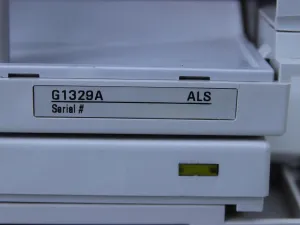

• G1329A Autosampler
• Injection volume: 0.1 to 100 µl in 0.1 µl increments
• Sample capacity:
• 100 × 2.0 mL vials (1 tray)
• 40 × 2.0 mL vials (half tray)
• 15 × 6.0 mL Agilent vials (half tray)
• Carryover: <0.1% (reduced to <0.05% with external needle cleaning)
• Supports 1 to 99 replicate injections per vial
• Minimum sample volume: 1 µl from 5 µl in 100 µl microvial or from 10 µl in 300 µl microvial
• Typical injection cycle time: 50 seconds
• Features early maintenance feedback (EMF), leak detection, and safe leak handling

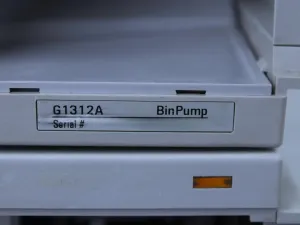

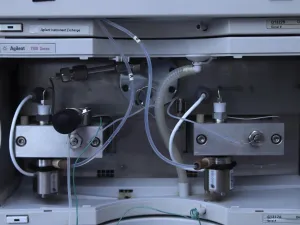

• G1312A Binary Pump
• Dual-piston design
• Settable flow range: 0.001 to 5 ml/min (increments as low as 0.0001 ml/min)
• Typical flow range: 0.1 to 5 ml/min
• High-pressure binary gradient mixing
• User-selectable compressibility compensation

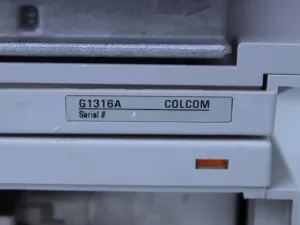

• G1316A Column Compartment
• Temperature control range: 10°C below ambient up to 80°C
• Column capacity: 3 × 30 cm columns
• Warm-up and cool-down time: 5 minutes (ambient to 40°C)
• Dead volume: 3 µl (left heat exchanger), 6 µl (right heat exchanger)

This system provides robust and adaptable chromatographic analysis with continuous availability of accessories and replacement parts.
