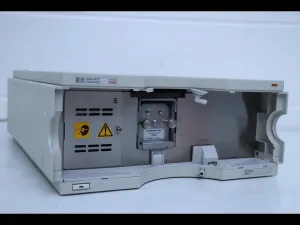

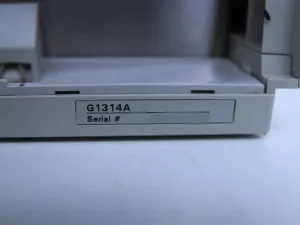

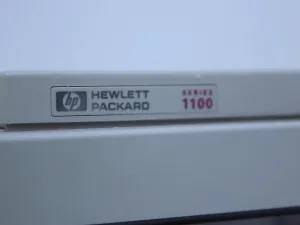

HP Agilent G1314A Variable Wavelength Detector (VWD) 1100 Series

The HP Agilent G1314A VWD 1100 Series is a variable wavelength detector designed for High-Performance Liquid Chromatography (HPLC) applications, featuring:

• Detection Principle: Double Beam Photometer
• Light Source: Deuterium lamp
• Wavelength Range: 190 nm to 600 nm
• Wavelength Accuracy: ±1 nm
• Bandwidth: Typically 6.5 nm
• Drift: 3 × 10⁻⁴ AU/hr at 254 nm

Flow Cell Options:

• *Standard:* 14 μL volume, 10 mm path length, max pressure 40 bar (588 psi)
• *High Pressure:* 14 μL volume, 10 mm path length, max pressure 400 bar (5880 psi)
• *Micro:* 1 μL volume, 5 mm path length, max pressure 40 bar (588 psi)
• *Semimicro:* 5 μL volume, 6 mm path length, max pressure 40 bar (588 psi)

Operational Features:

• Error detection with visual alerts
• Leak detection and safe leak handling systems
• Early Maintenance Feedback (EMF) for tracking maintenance and logging errors

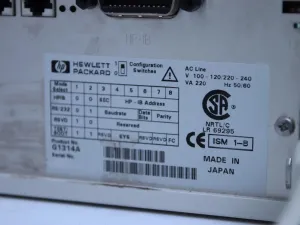

Communication Interfaces:

• Controller-Area Network (CAN)
• General Purpose Interface Bus (GPIB)
• RS232C serial communication
• APG Remote interface

This detector integrates with various control systems, providing reliable spectral detection for analytical applications.
