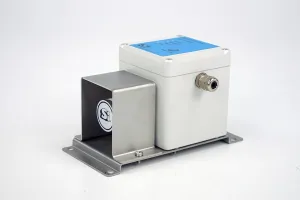

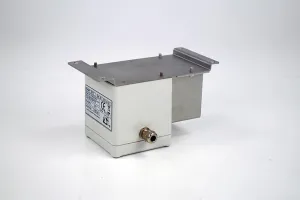

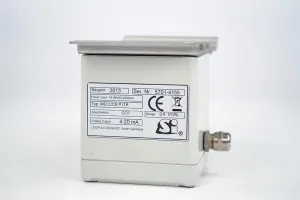

Si Meccos iTr CO2 EV Infrared Gas Transmitter and Alarm System 2013

From€178.5excl. VAT

In stock

Can't find what you're looking for?

Measured Gases
CO2
All 3 specifications
  • Ships to NL
  • Response within 1 hour
  • Warranty available. Buy without worry
  • Support from a scientist

Specifications 3

Brands
Si Meccos
New/Used
Used
Measured Gases
CO2

Product description

Stand-alone CO2 gas transmitter with infrared detection, alarm LEDs, buzzer, relays, and 4–20 mA output.

Si Meccos iTr CO2 EV is a stand-alone CO2 gas transmitter and alarm system designed for continuous indoor air-quality monitoring and gas-leak detection. It is suitable for laboratories, boiler rooms, storage areas, basements, conference halls, theaters, restaurants, and other occupied spaces where elevated carbon dioxide concentrations may require a warning.

  • Manufacturer: Si Meccos
  • Model: iTr CO2 EV
  • Part number: 13746
  • Serial number: 5701-4155
  • Year of manufacture: 2013
  • Condition: Very good, fully functional condition
  • Measurement principle: Infrared spectrometry
  • Measured gas: Carbon dioxide (CO2)
  • Wavelength: 4.3 µm
  • Light source: Halogen lamp
  • Detector: Pyroelectric lithium tantalate (LiTa) element
  • Optical path lengths: 50 mm, 20 mm, 10 mm, and 1 mm
  • Typical measuring ranges: 0–1, 0–2, 0–5, and 0–100 vol% CO2
  • Accuracy: ±5% of displayed value
  • Response time: Less than 30 seconds at 90%; maximum 1 minute at 100%
  • Operating temperature: +3 to +40°C
  • Measurement points: One maximum
  • Analog output: 4–20 mA, maximum 500 Ω load
  • Relay outputs: Three integrated relays for alarm, warning, and fault; normally open/normally closed contacts
  • Maximum relay rating: 48 V DC / 20 W
  • Visual indicators: Four LEDs for alarm, warning, operation, and fault
  • Alarm indication: Red LED for latching main alarm and self-resetting pre-alarm; yellow LED for fault; green LED for operation
  • Audible alarm: Internal buzzer for alarm and fault conditions
  • Control input: Reset button for alarm reset and test activation
  • Power supply: 18–26 V DC, residual ripple below ±100 mV
  • Power consumption: 25 W maximum
  • Ingress protection: IP56
  • Dimensions (L × W × D): 165 × 82 × 90 mm
  • Weight: 0.5 kg maximum

The compact CO2 monitor provides local concentration alerts through LED indicators, an internal buzzer, and configurable relay contacts. Its 4–20 mA output supports integration with building-management, laboratory safety, and environmental monitoring systems.
