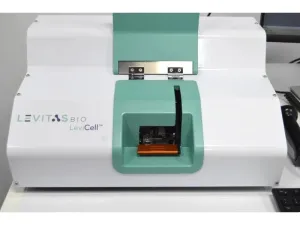

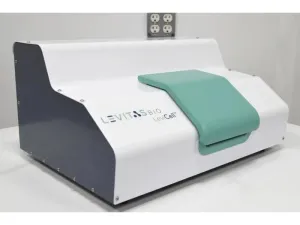

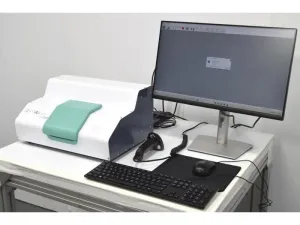

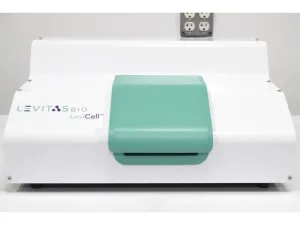

Levitas Bio LeviCell 1.0 Magnetic Levitation Label-Free Cell Analyzer System

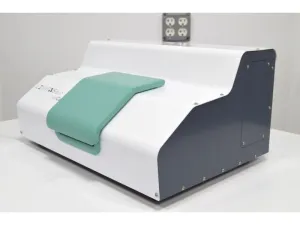

The Levitas Bio LeviCell 1.0 Analyzer System is a compact, benchtop instrument designed for label-free cell separation using proprietary magnetic levitation technology that differentiates cells based on intrinsic density variations. Ideal for biotechnology and molecular diagnostics workflows, the system preserves cell viability while enabling rapid isolation and enrichment of viable cell populations from heterogeneous samples, essential for molecular cloning, synthetic biology, and bioprocessing applications.

Key technical features include:

• Single sample input with two output fractions to separate viable and nonviable cells efficiently.
• Use of rare-earth permanent levitation magnets to achieve non-contact density-based separation.
• Integrated syringe pump ensuring controlled and automated sample flow rate at 100 μL/min for smooth processing and reproducibility.
• Dual imaging modalities: brightfield (transmitted illumination) and two LED fluorescence channels—470 nm excitation/524 nm emission (e.g., Calcein, FITC) and 560 nm excitation/628 nm emission (e.g., Propidium Iodide, Cy3.5)—supporting precise fluorescence-based analysis and viability assessment.
• Approximate image resolution of 2 microns, compatible with detailed cell imaging and morphological studies.

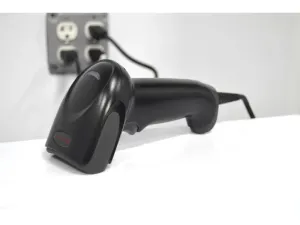

• Barcode scanner included to facilitate sample tracking and data integrity within high-throughput workflows.

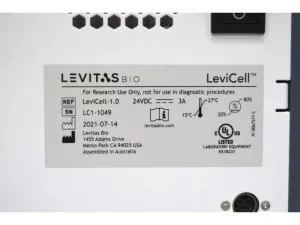

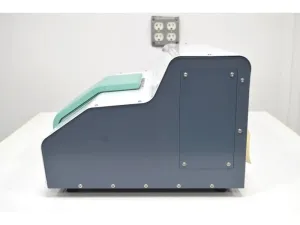

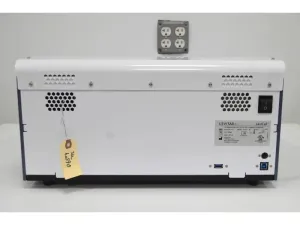

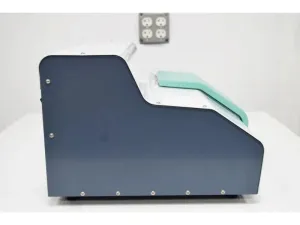

• System operates on 100–240 VAC input voltage with compact enclosure dimensions of 475 x 340 x 240 mm and weighs approximately 15.3 kg (33.6 lbs), allowing easy integration into standard laboratory environments.

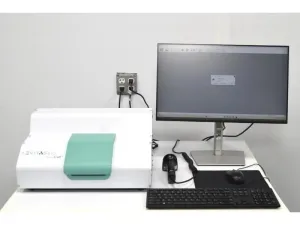

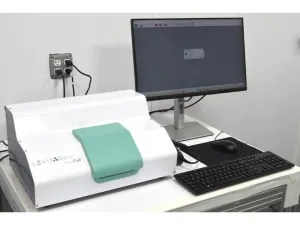

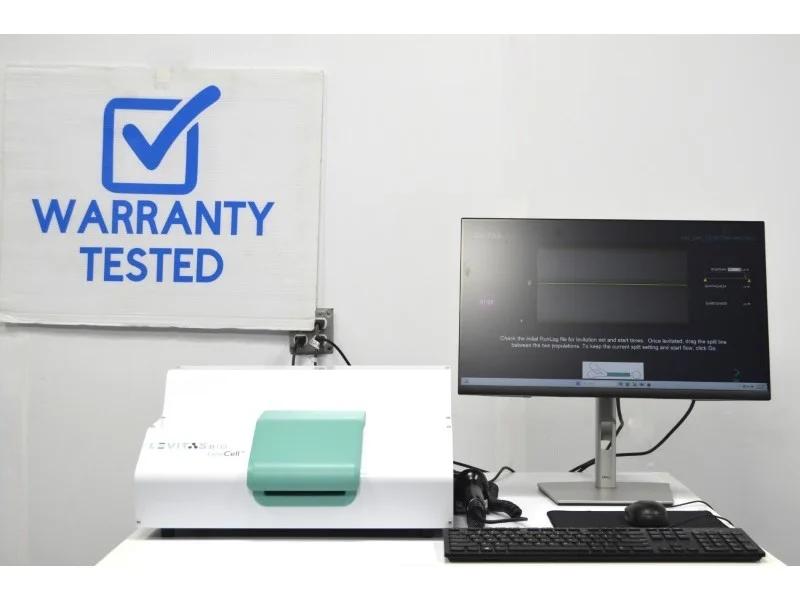

• Supplied with Windows 11 PC running Levitas Experiment Manager v2.3.1 software for experiment control and data acquisition.

This system is widely adopted in biotechnology research fields, including live-cell imaging, fluorescence analysis, biomanufacturing, and clinical diagnostics, where gentle, label-free cell handling and accurate viability sorting are critical. The LeviCell 1.0 Analyzer supports rapid processing with minimal hands-on time, making it essential in high-throughput molecular biology and synthetic biology research pipelines.

The package includes all necessary components and remote instrument setup and training, with after-sales technical support and warranty coverage. The LeviCell 1.0 is a reliable solution for laboratories seeking advanced cell separation technology without compromising cell integrity, well suited for workflows in gene editing, molecular diagnostics, and bioprocessing research.
