Agilent xCELLigence RTCA MP Real-Time Cell Analyzer W380 with 6×96 E-Plate Station

Agilent xCELLigence RTCA MP Real-Time Cell Analyzer W380 is a pre-owned, serviced impedance-based cell analysis system configured with an Agilent RTCA MP Station 6×96. It provides label-free, real-time monitoring of cell health, viability, proliferation, adhesion, migration, barrier function, and drug-induced responses.

The system supports up to six 96-well E-Plates and operates inside a standard CO2 incubator while maintaining external instrument control. It is suitable for cell biology, drug discovery, immunotherapy, cytotoxicity screening, viral research, receptor signaling, biotechnology, and biopharmaceutical development workflows.

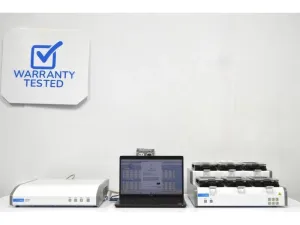

System configuration

• Agilent xCELLigence RTCA Analyzer, model W380
• Agilent RTCA MP Station 6×96
• Laptop with RTCA software trial
• Laptop power cable
• Analyzer power cable
• EPS analyzer-to-MP communication cable
• Serial-to-USB communication cable
• RTCA software license purchased separately from Agilent

RTCA MP Analyzer specifications

• Electrical input: 100 to 240 VAC, 50 to 60 Hz, 25 W maximum
• Output test signal: 22 mV rms ±20% at 10, 25, and 50 kHz
• Impedance measurement accuracy: ±(1% + 1.5 Ω)
• Impedance measurement repeatability: 0.8%
• Impedance dynamic range: 10 to 5 kΩ
• Communications: RS-232 serial, 57,600 bits/second
• Environmental temperature: +15 to +32 °C
• Relative humidity: 80% maximum up to 31 °C, decreasing linearly to 50% maximum at 40 °C
• Dimensions: 40 cm × 40 cm × 8 cm (W × D × H)
• Status indicators: Power, communications, and analyzer status LEDs

RTCA MP Station specifications

• Electrical input: ±5 VDC, +12 VDC, 10 W maximum
• Electronic switch resistance: 2 to 5 Ω
• Plate handling: Six E-Plate 96 devices
• Communications: RS-232 serial, 57,600 bits/second
• Environmental temperature: +20 to +40 °C
• Relative humidity: 98% maximum, noncondensing
• Measurement rate: less than 10 seconds for one E-Plate 96; less than 1 minute for six E-Plates
• Dimensions: 44 cm × 44 cm × 18 cm (W × D × H)
• Status indicators: Power and device status LEDs

Applications

• Label-free cell viability and proliferation assays
• Cytotoxicity and drug-response screening
• Immune cell-mediated killing and immunotherapy research
• Viral cytopathic effect detection
• Cell adhesion, spreading, and migration studies
• Barrier function analysis
• Receptor signaling and functional pathway analysis
• Kinetic cell monitoring from seconds to days
• Molecular biology, biotechnology, and biopharmaceutical research

Testing and condition

The instrument was serviced and tested by an in-house technical team. Testing included power-up and initialization, self-check procedures, internal electronics inspection, corrosion and contact inspection, plate-lock sensor testing, status LED inspection, software communication testing, recognition of all six plate positions, and resistance-plate verification under full-load conditions.

An optional CO2 incubator may be available separately. RTCA E-Plates, E-Plate Inserts, and xCELLigence Immunotherapy Kits are required consumables.
