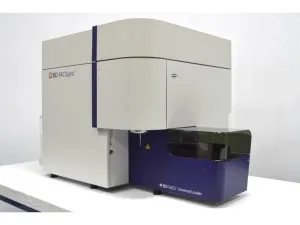

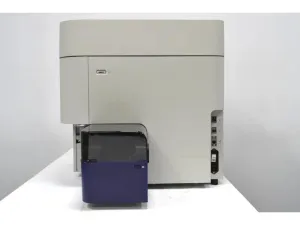

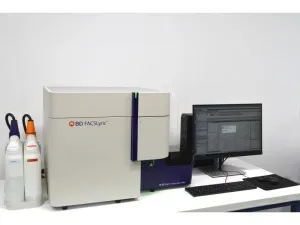

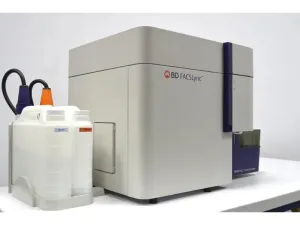

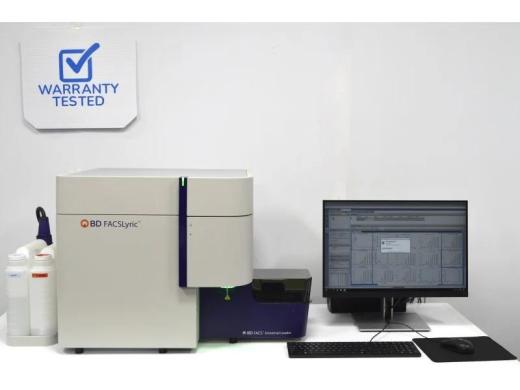

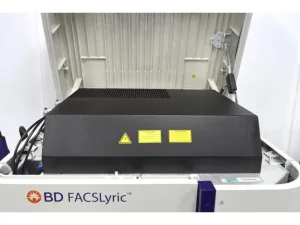

BD FACSLyric IVD Flow Cytometer, 3-Laser 12-Color, 14-Detector System with Universal Loader, 2025

The BD FACSLyric IVD flow cytometer is a multiparameter cell analysis system configured for three-laser, 12-color fluorescence analysis across 14 detector channels. It is suitable for clinical flow cytometry, immunophenotyping, leukemia and lymphoma analysis, immune research, cell viability studies, and multicolor fluorescence assays.

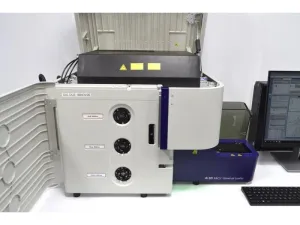

Optical and analytical configuration

• Three lasers:
• 488 nm blue
• 640 nm red

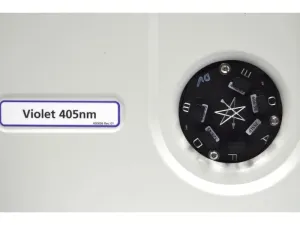

• 405 nm violet
• Simultaneous detection of 12 colors
• 14 detector channels
• Laser allocation:
• Blue: 4 channels
• Red: 3 channels
• Violet: 5 channels
• Forward scatter detection: photodiode detector
• Side scatter detection: photomultiplier tube (PMT) with a 488/15 filter
• Beam spot size for all lasers: 9 µm × 63 µm
• Fluorescence threshold sensitivity:
• FITC: <85 MESF
• PE: <20 MESF
• Data acquisition rate: 35,000 events/s with beads

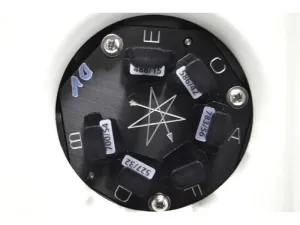

Fluorescence channel configuration

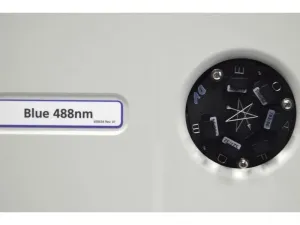

• 488 nm blue laser
• Channel A: 783/56, 752LP
• Channel B: 700/54, 665LP
• Channel C: 586/42, 560LP
• Channel D: 527/32, 507LP

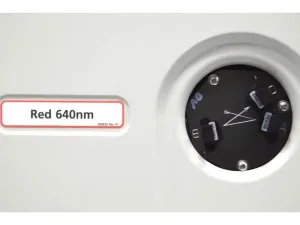

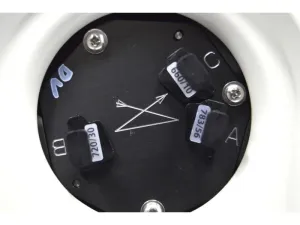

• 640 nm red laser
• Channel A: 783/56, 752LP
• Channel B: 720/30, 705LP
• Channel C: 660/10

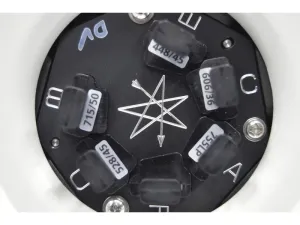

• 405 nm violet laser
• Channel A: 755LP
• Channel B: 715/50
• Channel C: 606/36
• Channel D: 528/45, 500LP
• Channel E: 448/45

Sample handling and throughput

• Manual tube loading

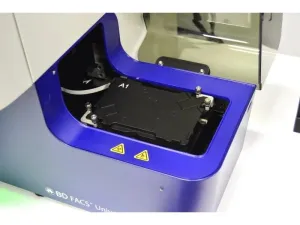

• Universal Loader for:
• 30-tube racks containing 12 × 75 mm tubes
• 96-well plates
• 384-well plates
• Sample dead volume: 30 µL for 12 × 75 mm tubes
• Sample flow rates:
• Low: 12 µL/min
• Medium: 60 µL/min
• High: 120 µL/min
• High sensitivity: 50 µL/min

Included equipment and accessories

• BD FACSLyric IVD Flow Cytometry System, reference 663518

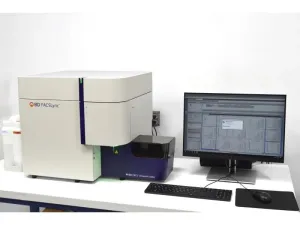

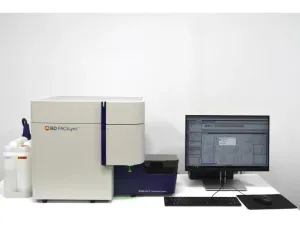

• Computer with FACSSuite Clinical and RUO software
• Software license dongle
• Monitor, keyboard, and mouse
• Sample Prep Ready 40-tube rack
• Sample Prep and barcode-ready 30-tube rack

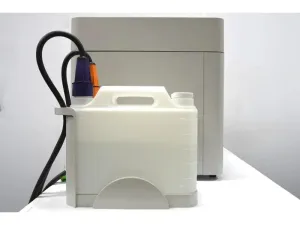

• Extended-use supply tank

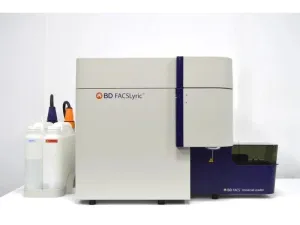

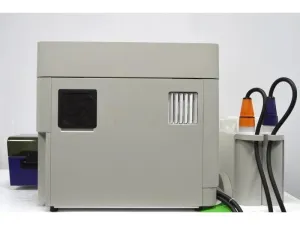

• 10 L sheath and waste bottles

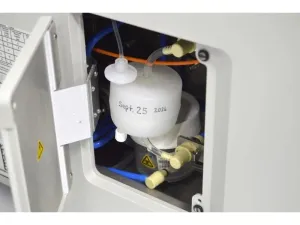

• Sheath filter bypass for cleaning fluidics
• Communication and power cables

Dimensions and weight

• Cytometer dimensions (D × W × H): 63.2 × 57.9 × 57.9 cm
• Cytometer dimensions (D × W × H): 24.9 × 22.8 × 22.8 in.
• Cytometer weight: 56.0 kg (123.5 lb)
• Loader weight: 13.2 kg (29 lb)

The system was made in September 2025 and underwent setup, initialization, fluidics cleaning, laser performance testing, alignment verification, maintenance cleaning cycles, Universal Loader testing, and performance quality control testing. QC documentation and the BD FACSLyric Flow Cytometer manual are included. This pre-owned flow cytometry system is suited to clinical diagnostics, biomedical research, immunology, biotechnology, and high-throughput cell analysis workflows.
