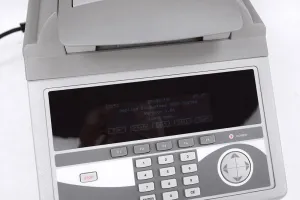

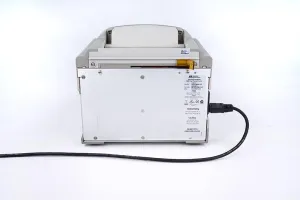

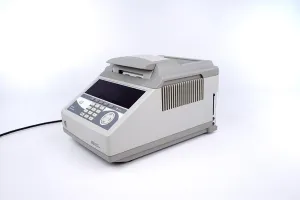

Applied Biosystems 9800 Fast Thermal Cycler 96-Well PCR System 4349441

The Applied Biosystems 9800 Fast Thermal Cycler is a 96-well PCR system designed to reduce amplification time while maintaining temperature uniformity, accuracy, sensitivity, and reproducibility. The instrument supports both Fast Mode and Standard Mode, making it suitable for high-throughput molecular biology, biotechnology, genomic research, molecular diagnostics, and shared laboratory workflows.

Key features

• PCR reaction times from 2 hours to 25 minutes or less
• Integrated 96-well fast PCR format
• Fast and Standard ramp modes
• Heating ramp speed: 5.0°C/second
• Cooling ramp speed: 4.1°C/second
• Uniform heating and cooling performance
• Sample temperature control
• Compatible 96-well fast thermal cycling plate optimized for 20 µL PCR reactions
• Suitable for rapid DNA amplification, molecular cloning workflows, genetic analysis, and biotechnology research

Specifications

• Thermal non-uniformity at 95°C, 10 seconds after clock start: < 0.5°C
• Thermal non-uniformity at 55°C, 10 seconds after clock start: < 0.5°C
• Block temperature accuracy: ±0.25°C over 35–100°C
• Temperature range: 4.0–99.9°C
• Cycle speed: <10 minutes to uniformity cycle samples from 94°C, 0 seconds to 64°C, 0 seconds, 25 times
• Power: 240 VAC, 50–60 Hz, 850 VA
• Dimensions, H × W × D: 26 × 30 × 52 cm
• Weight: 12 kg

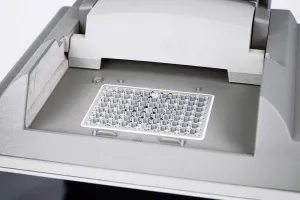

96-well fast thermal cycling plate

• Format: 96-well SBS standard
• Recommended PCR volume: 20 µL
• Minimum/maximum PCR volume: 10–30 µL
• Maximum total well liquid capacity: 100 µL

Included

• Applied Biosystems 9800 Fast Thermal Cycler PCR System
• Instruction manual supplied as a PDF by email request

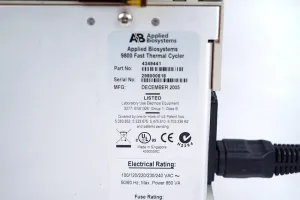

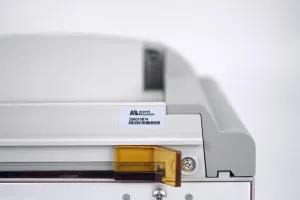

The unit is described as being in very good cosmetic and operating condition, fully functional tested, and ready for laboratory use. Part number: 4349441. Serial numbers: 298000818; 298010874. Year of manufacture: 12.2005.
