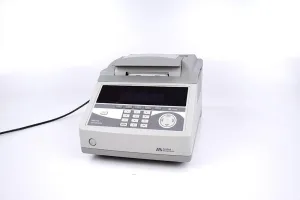

Applied Biosystems 9800 Fast Thermal Cycler PCR System 96-Well 4349441

The Applied Biosystems 9800 Fast PCR System is a 96-well fast thermal cycler designed to reduce PCR reaction times while maintaining reproducibility and temperature uniformity. It supports both Fast Mode and Standard Mode for rapid amplification and conventional PCR protocols.

The system can reduce typical PCR reaction times from approximately 2 hours to 25 minutes or less. It is suitable for service laboratories, shared research facilities, molecular biology, biotechnology, and routine genomic DNA amplification workflows.

Thermal Cycling Features

• 96-well integrated PCR system
• Fast and Standard ramp modes
• Sample temperature control
• PCR reaction times of 25 minutes or less for suitable protocols
• Heating ramp speed: 5.0°C/second
• Cooling ramp speed: 4.1°C/second
• Temperature range: 4.0–99.9°C
• Block temperature accuracy: ±0.25°C over 35–100°C
• Thermal non-uniformity:
• Less than 0.5°C at 95°C, 10 seconds after clock start
• Less than 0.5°C at 55°C, 10 seconds after clock start
• Cycle speed: less than 10 minutes to uniformity cycle samples from 94°C, 0 seconds to 64°C, 0 seconds, repeated 25 times
• Hot-start chemistry support for improved PCR specificity and sensitivity

96-Well Fast Thermal Cycling Plate

• Format: 96-well SBS standard
• Recommended PCR volume: 20 µL
• Minimum/maximum PCR volume: 10–30 µL
• Total well liquid capacity: 100 µL maximum
• Plate optimized for fast PCR reactions and use with the 9800 system sample block

Technical Specifications

• Power requirements: 240 VAC, 50–60 Hz, 850 VA
• Dimensions, H × W × D: 26 × 30 × 52 cm
• Weight: 12 kg
• Part number: 4349441
• Serial numbers: 298000818; 298010874
• Year of manufacture: December 2005

The delivered system includes the Applied Biosystems 9800 Fast Thermal Cycler PCR System. An instruction manual is available as a PDF by email request. The unit is described as cosmetically and operationally very good, fully functional, tested, and ready for use.
