PRIOR ZDP12ME Motorized Electrophysiology Z-Deck with ProScan III H31XYZE Controller

The PRIOR ZDP12ME Motorized Z-Deck system is designed for high-precision motorized control of microscope stage movement, providing automated focus, height adjustment, and XY positioning tailored for electrophysiology and micromanipulation applications. Coupled with the ProScan III H31XYZE Microscope Controller, this system delivers smooth, reproducible movement essential for molecular diagnostics, bioprocessing setups, and live-cell imaging workflows.

Key technical features include:

• Z-Deck Travel: 57 mm vertical range for fine automated focus positioning.
• XY Travel Range: 65 mm × 65 mm with nanometer resolution (20 nm), enabling precise spatial manipulation for 3D imaging and patch clamp experiments.
• Stage Speed: XY movement up to 15 mm/s, suitable for high-throughput and time-lapse microscopy sessions.
• Positioning Accuracy: Backlash minimized to 3.5–7 µm depending on encoding; repeatability at 1.5 µm for consistent experiment reproducibility.
• Load Capacity: Supports up to 15 kg dynamic and 50 kg static loading, accommodating heavy microscope components or accessories.
• Controller Interface: USB and RS232 connectivity with programmable TTL I/O, enabling seamless integration in automated microscopy and electrophysiology setups.
• Joystick Control: Includes CS200XY joystick for intuitive manual navigation alongside automated functions.

This motorized stage system is compatible with popular upright microscopes used in electrophysiology such as Olympus BX51WI/BX61WI and potentially adaptable for Nikon FN1 and Zeiss Axio Examiner, making it widely adopted in neuroscience research and biomedical engineering domains.

The system is essential for laboratories undertaking synthetic biology, molecular cloning, and biopharmaceutical production pipelines where precise positioning and reliable motorized stage control are critical. Its integration facilitates enhanced experimental accuracy in live-cell imaging, fluorescence analysis, and bioprocess monitoring.

Applications include:

• Automated slide scanning and focus stacking
• High-throughput electrophysiology recordings
• Time-lapse and 3D microscopy imaging
• Micromanipulation for gene editing and molecular diagnostics

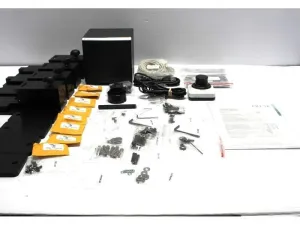

The package contains the ZDP12ME motorized Z-Deck, ProScan III H31XYZE controller, CS200XY joystick, and necessary accessories. It is backed by a 120-day US warranty and supported by experienced technical sales consultation, ensuring reliable operation and simplified integration in advanced research laboratories.

This stage is not optimally suited for experiments highly sensitive to electrical noise and users requiring minimum interference should consider manual alternatives. However, for most motorized electrophysiology and live-cell microscopy applications, the PRIOR ZDP12ME is a robust, high-precision solution that enhances experiment repeatability and throughput.
