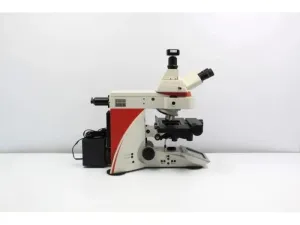

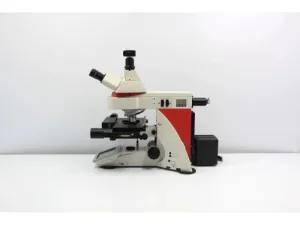

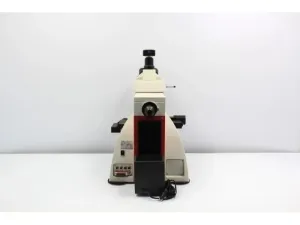

Leica DM6 B Upright LED Fluorescence Microscope with Motorized Stage for Advanced Research

The Leica DM6 B Upright LED Fluorescence Microscope is a high-performance, automated research-grade instrument designed for advanced fluorescence imaging applications in biotechnology, clinical diagnostics, and biomedical research. Featuring a motorized XY stage and Z-axis focus drive, it enables precise, reproducible multi-dimensional imaging essential for live-cell observation, quantitative analysis, and multi-position time-lapse studies.

Key features include:

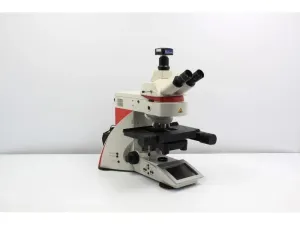

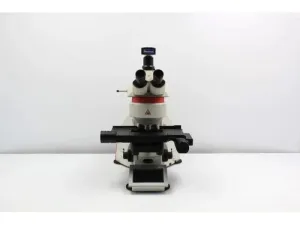

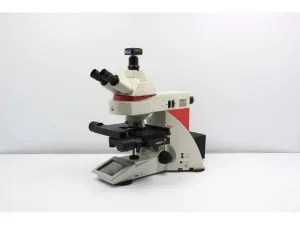

• Microscope Base: Upright Leica DM6 B with motorized Z-axis drive controlled via a CTR6 control box for seamless focus adjustment and parfocality recall.
• Optical System: High-quality trinocular head with camera port, two eyepieces, and an 8-position motorized objective turret supporting objectives from 4x to 20x (PL and Fluotar series) for magnifications up to 200x with enhanced resolution.

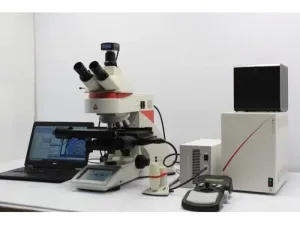

• Illumination: Integrated Lumencor LED light engine optimized for fluorescence intensity and minimal photobleaching; complemented by a 100W halogen source for brightfield illumination.
• Fluorescence Module: Motorized 5-position fluorescence filter cube turret equipped with three filter cubes, customizable for various fluorochromes to support diverse fluorescence microscopy techniques used extensively in molecular diagnostics and synthetic biology research.
• Stage and Control: Motorized XY stage with controller and joystick providing fine spatial positioning, critical for stitching/mosaic imaging and multi-sample analysis in bioprocessing workflows.

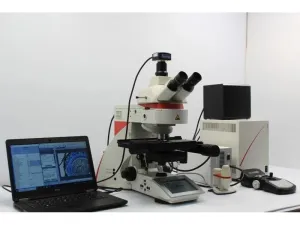

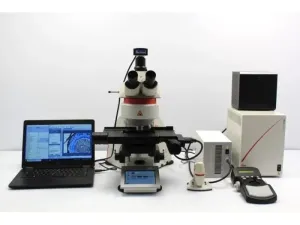

• Imaging Components: Included Bestscope 8.3MP color CMOS camera with 1x C-mount adapter; compatible with open-source MicroManager/ImageJ software suite for advanced image acquisition, annotation, multi-dimensional analysis (multi-frame/time-lapse, multi-slice Z-stacking, and multi-position XY stitching).
• Automation: Comprehensive motorization of filter cubes, objective turret, light intensity, shutters, apertures, diaphragm, stage, and focus enables flexible, hands-free experiment control boosting throughput in gene editing and molecular cloning workflows.
• Customization: Offers upgrade options such as high-end CCD, sCMOS, or EMCCD cameras; additional fluorescence filters and light sources (Xenon, Metal Halide); specialized objectives (Fluor or APO); and various contrast modalities including phase contrast, DIC, and polarization.
• Applications: Widely used in cell imaging, neuroscience, pharmacological studies, biopharmaceutical production pipelines, biotechnology research, material science, and educational settings. Supports live cell imaging and quantitative fluorescence analysis in molecular biology environments.

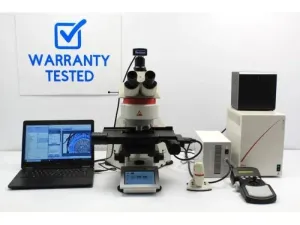

• Warranty and Support: Comes with a 180-day USA warranty and 60-day international warranty, remote training sessions, optional onsite installation, and expert after-sales technical assistance ensuring operational reliability.

The Leica DM6 B system is recognized for its robust optical design and adaptive automation, making it critical in biomanufacturing, molecular diagnostics, and synthetic biology research laboratories requiring precision fluorescence microscopy with flexible multi-dimensional imaging capabilities.
