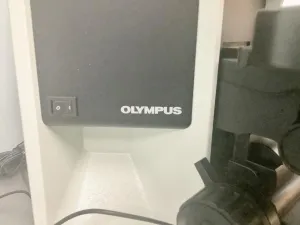

Olympus BX43F Upright LED Fluorescence Microscope with Integrated Imaging Workstation

UsedOlympusMicroscopesUnited States

Price on request

In stock

Can't find what you're looking for?

Optical System UIS2 optical system
Focus Vertical stage movement: 25 mm stage stroke with coarse adjustment limit stopper, torque adjustment for coarse adjustment knobs, stage mounting position variable, high sensitivity fine focusing knob (minimum adjustment gradations: 1 μm)
Illuminator
Built-in Koehler illumination for transmitted light, light intensity manager switch high color reproductivity 2 W LED light source
Revolving Nosepiece
Quintuple, Interchangeable
Stage
Ceramic-coated coaxial stage with hand low drive control: with rotating mechanism and torque adjustment mechanism
Power
120V Power Cord (5A)
All 9 specifications
  • Ships to NL
  • Response within 1 hour
  • Warranty available. Buy without worry
  • Support from a scientist

Specifications 9

Brands
Olympus
New/Used
Used
Optical System UIS2 optical system
Focus Vertical stage movement: 25 mm stage stroke with coarse adjustment limit stopper, torque adjustment for coarse adjustment knobs, stage mounting position variable, high sensitivity fine focusing knob (minimum adjustment gradations: 1 μm)
Illuminator
Built-in Koehler illumination for transmitted light, light intensity manager switch high color reproductivity 2 W LED light source
Revolving Nosepiece
Quintuple, Interchangeable
Stage
Ceramic-coated coaxial stage with hand low drive control: with rotating mechanism and torque adjustment mechanism
Dimensions
25x11x21” Microscope w/camera 11x7x9” X-Cite
Weight
29lbs Microscope w/camera 3lbs X-Cite
Power
120V Power Cord (5A)

Product description

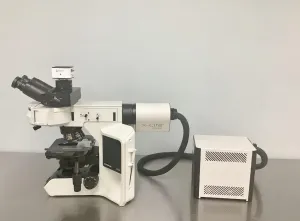

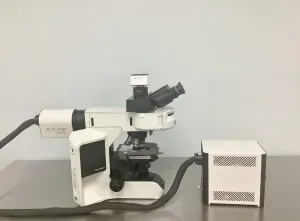

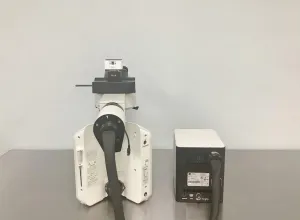

Fully integrated Olympus BX43F upright fluorescence microscope with LED excitation, multi-channel filters, and digital imaging system.

The Olympus BX43F is a precision-engineered upright fluorescence microscope designed for advanced fluorescence microscopy, brightfield observation, and digital image documentation in biotechnology and molecular diagnostics. Built on the BX43 frame with UIS2 optics, this system features:

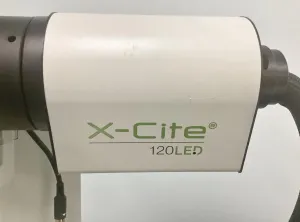

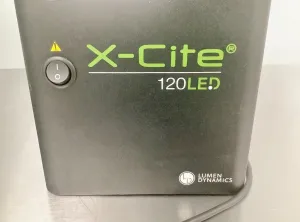

  • High-performance LED illumination: X-Cite 120LED Boost high-power LED excitation for stable fluorescence with rapid startup; built-in Köhler 2 W LED transmitted light source
  • Multi-channel fluorescence capability: Equipped with DAPI, TX Red, and Cy5 filter cubes for broad-spectrum multi-color fluorescence imaging critical in cell imaging and synthetic biology research

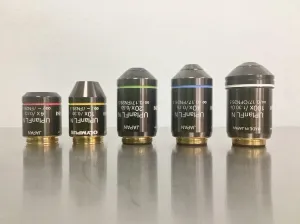

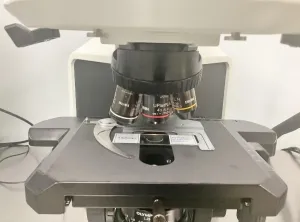

  • Objectives: Complete Olympus UPlan FL N objective set (4x/0.13, 10x/0.30, 20x/0.50, 40x/0.75, 100x/1.30 oil) supporting both wide-field and high-resolution fluorescence imaging essential in molecular cloning workflows

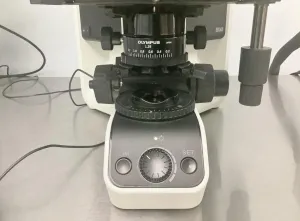

  • Stage and focus control: Ceramic-coated coaxial stage with low-drive hand controls, rotational and torque adjustment, 25 mm vertical stroke with coarse adjustment limit stopper, and 1 µm fine focus graduations enabling precise specimen manipulation and protection during fluorescence observation

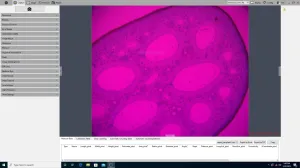

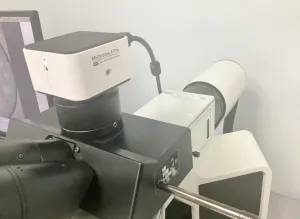

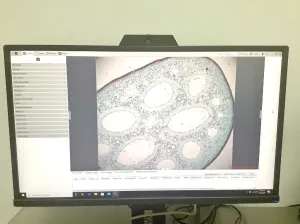

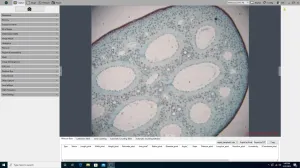

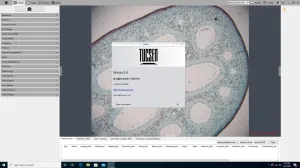

  • Digital imaging workstation: Includes Michrome 5 Pro 5 MP color camera, Windows 10 computer with Mosaic 2.4 imaging software for acquisition, annotation, and data management, facilitating documentation and analysis relevant to bioprocessing and biomedical engineering

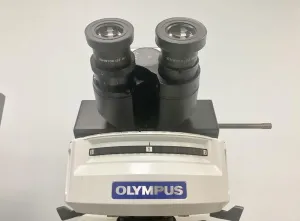

  • Ergonomic design: Quintuple interchangeable nosepiece and Olympus WHN10X/22 eyepieces ensure versatile optics setup for various fluorescence and transmitted light applications

This system is widely used in biotechnology laboratories, clinical diagnostics, neuroscience, and live-cell imaging studies as a comprehensive fluorescence imaging platform. Its durable design and matched components make it critical in biopharmaceutical production pipelines and gene editing research workflows needing reliable fluorescence visualization and digital image capture.

Technical specifications:

  • Optical system: UIS2 optical design
  • Illumination: X-Cite 120LED Boost LED fluorescence excitation; built-in Köhler 2 W LED illumination for transmitted light with intensity manager
  • Nosepiece: Quintuple, interchangeable
  • Stage: Ceramic-coated coaxial with rotation and torque adjustment
  • Focus: Vertical stroke 25 mm with coarse stop, 1 µm fine focus gradations
  • Dimensions: Microscope w/camera 25x11x21 in; LED source 11x7x9 in
  • Weight: Microscope w/camera 29 lbs; LED source 3 lbs
  • Power: 120 V, 5 A

Includes LCD monitor, keyboard, mouse, communications cables, user manual, and 30-day warranty. This Olympus BX43F fluorescence microscope package provides an integrated solution for robust fluorescence imaging essential for research in molecular biology and bioprocessing environments.
