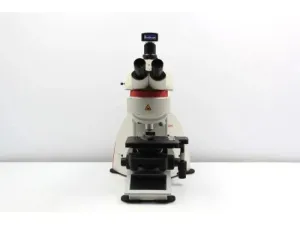

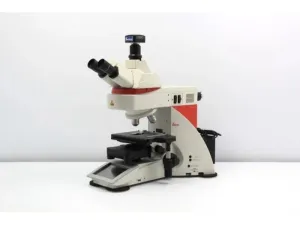

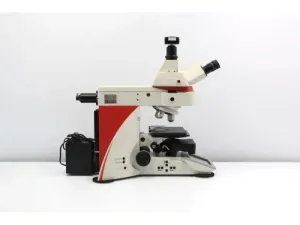

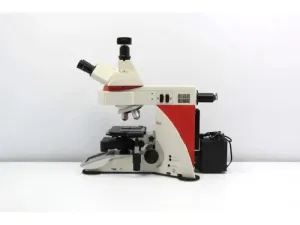

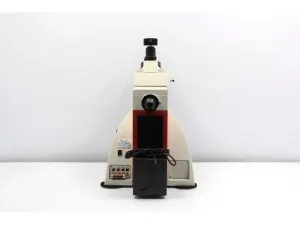

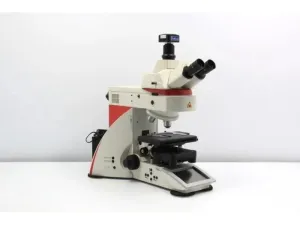

Leica DM6 B Upright Fluorescence Microscope with Motorized Components and Advanced Imaging

The Leica DM6 B Upright Fluorescence Microscope is a research-grade, motorized fluorescence imaging platform optimized for advanced biological, medical, and biotechnology applications including molecular diagnostics and live-cell imaging. This microscope integrates precision motorized control and high-quality optics to support a variety of fluorescence and brightfield microscopy techniques essential in bioprocessing, gene editing workflows, and cellular analysis.

Key technical features include:

• Motorized components: 5-position fluorescence filter cube turret, 8-position objective turret, fluorescence shutter, brightfield aperture diaphragm, Z-axis focus drive, and light intensity control enable automated, reproducible imaging and parfocal precision.
• Optical setup: Equipped with high-quality Leica PL and Fluotar objectives (4x/0.10, 10x/0.30, 20x/0.50), a mechanical XY stage, and a trinocular head with camera port.

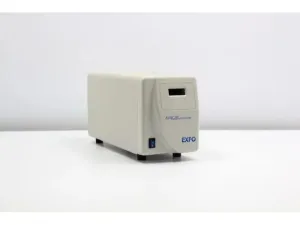

• Fluorescence illumination: EXFO X-Cite 120 Metal Halide light source with collimating adapter and three fluorescence filter cubes, customizable for specific fluorochromes common in synthetic biology and molecular biology research.
• Imaging system: High-resolution Bestscope 8.3MP color CMOS camera supported by open-source Micromanager and ImageJ software facilitates multi-dimensional acquisitions, time-lapse, Z-stacking, and mosaic stitching critical in biomanufacturing research.
• Ergonomics & flexibility: Designed for extended use with customizable configurations including phase contrast, DIC, polarization options, CCD/sCMOS/EMCCD camera upgrades, and motorized XY stage availability.
• Applications: Widely utilized in fluorescence microscopy for cellular and tissue imaging, pharmacological studies, material science, and educational settings. Particularly suited for biotechnological investigations such as gene editing, molecular cloning workflows, and quantitative fluorescence analysis.

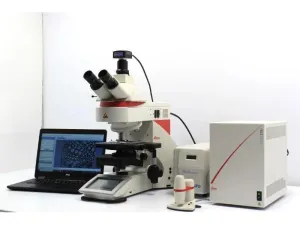

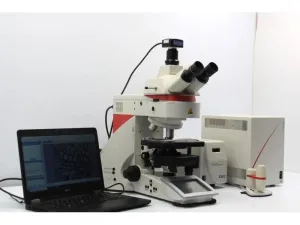

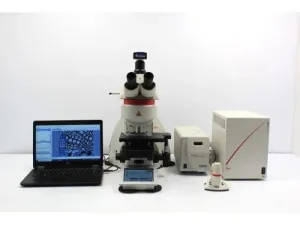

The system includes Dell Windows 10 laptop, comprehensive software suite, power and communication cables, and offers remote training and calibration services. Warranty coverage supports US and international use with optional extended support. This microscope meets the demands of molecular biology researchers and biotechnology professionals requiring precise, automated fluorescence imaging solutions tailored to modern life sciences and biomedical engineering challenges.
