FANUC R-30iB Mate Plus Robot Cell with LR Mate 200iD/7L for Automated Pick and Place

UsedFanucMotion control equipmentNetherlands

€31,216.16excl. VAT

In stock

Can't find what you're looking for?

make
IDI interactive Design
hertz
50Hz/60Hz
voltage
220V
warranty
30-Day Warranty On Part
shipping_type
Freight
All 11 specifications
  • Ships to NL
  • Response within 1 hour
  • Warranty available. Buy without worry
  • Support from a scientist

Specifications 11

Brands
Fanuc
New/Used
Used
make
IDI interactive Design
hertz
50Hz/60Hz
weight
1868.0 Lb
voltage
220V
warranty
30-Day Warranty On Part
dimensions
62.0in x 148.0in x 88.0in
shipping_type
Freight
item_condition
Good
manufacturing_date
2020-06-01

Product description

Custom FANUC robot cell with 6-axis LR Mate 200iD/7L arm, 7 kg payload, 911 mm reach, 70-100 ppm operation speed.

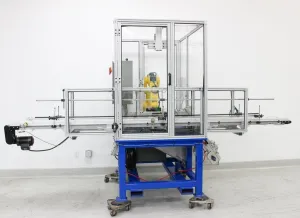

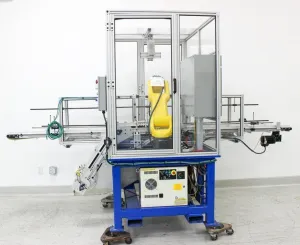

This custom robot cell features the FANUC R-30iB Mate Plus System with the LR Mate 200iD/7L robot arm designed for automated pick and place operations in medical and manufacturing settings.

  • Year of Manufacture: 2020
  • Payload Capacity: Up to 7 kg
  • Max Reach: 911 mm
  • Axes: 6 controlled axes for flexible movement
  • Speed: Processes 70 to 100 parts per minute
  • Programming: Offline programming supported via FANUC ROBOGUIDE software
  • Vision System: Integrated with iRVision software for machine vision capabilities to enhance sorting and packaging
  • Power: Operates at 220 V, 50/60 Hz
  • Weight: Approximately 1016.77 kg (2241.6 lb)
  • Shipping Dimensions: 188.98 cm × 451.1 cm × 268.22 cm
  • Safety Features: Restricted human access during operation, speed limitation lifted only under safe conditions
  • Condition: Good with minor cosmetic wear; some safety clips damaged and reset buttons missing but functionality unaffected
  • Applications: Suitable for assembly, machine tending, material handling, and packaging automation

The system is classified under HS Code 84795000, covering specialized industrial robots designed for automated manufacturing processes.
