Custom Pneumatic Bench Press with Interchangeable Tooling Inserts for Precision Prototype Assembly

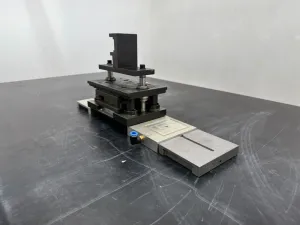

This custom pneumatic bench press is engineered for precision applications in prototype assembly, light-duty forming, and tooling development, making it essential for biotechnology labs and biomanufacturing pilot setups. The system features a guided upper plate mounted on dual linear guide rails with precision bearings and a spring-assisted return mechanism, ensuring repeatable pressing, sealing, and alignment with high accuracy.

Key technical features include:

• Pneumatic actuation with a single-acting cylinder operating at 40–100 PSI for controlled downward force.
• Modular insert platform with quick-change tooling plates secured by alignment dowels for consistent registration, facilitating rapid adaptation to different experimental setups or production stages.
• Robust construction combining hardened tool steel for the upper assembly and aluminum base plates to balance durability with reduced weight (~12 lb/5.4 kg).
• Ergonomic operation supporting manual or foot-pedal triggering (pedal sold separately), suitable for repetitive tasks in clinical diagnostics and synthetic biology workflows.

Its compact footprint (approx. 6 in H × 12 in W × 4 in D) and stable benchtop mounting options make it ideal for laboratory, pilot plants, or small-batch manufacturing scenarios focused on essential molecular diagnostics preparation, bioprocessing, and gene editing protocols requiring precise mechanical manipulation. The ¼ inch push-to-connect pneumatic fitting streamlines integration with standard compressed air supplies typically available in biotechnology research environments.

This benchtop pneumatic press is widely used in biomedical engineering, live-cell imaging equipment fabrication, and biopharmaceutical production pipelines, where consistent and reliable mechanical pressing operations are critical. It supports a range of experimental tooling, enabling efficient prototyping and process development in synthetic biology and molecular cloning workflows.
