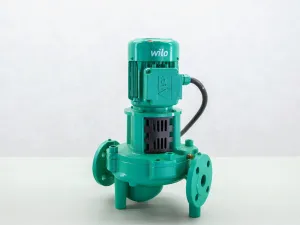

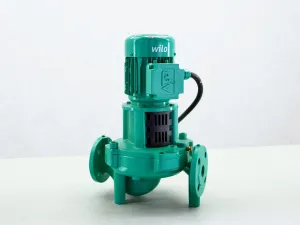

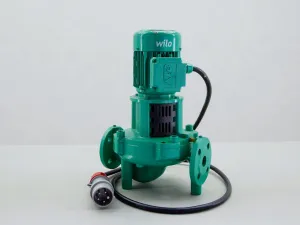

Wilo CronoLine-IL 32/140-0.25/4 dry-running centrifugal inline pump

UsedWiloProcess pumpsNetherlands

Price on request

In stock

Can't find what you're looking for?

Guarantee
1 month
Status
Ongebruikt
All 4 specifications
  • Ships to NL
  • Response within 1 hour
  • Warranty available. Buy without worry
  • Support from a scientist

Specifications 4

Brands
Wilo
New/Used
Used
Guarantee
1 month
Status
Ongebruikt

Product description

Dry-running inline centrifugal pump, 0.25 kW, DN32 flange, 7.6 m³/h flow, 3~400V, IE2 motor efficiency

  • Pump Type: Single-stage, dry-running centrifugal pump, inline type for pipe or foundation installation
  • Construction: Low-vibration, low-noise block construction with lantern piece; flange-mounted standard motor
  • Seal: Direction-independent mechanical bellows seal with forced circulation; cavitation-reducing impeller
  • Coating: Cataphoresis coating on pump housing and lantern piece
  • Hydraulic Data:
  • Connection flange size (suction and pressure): DN32
  • Flow rate: 7.6 m³/h
  • Maximum working pressure PN: 16 bar (16 bar to 120°C; 13 bar to 140°C)
  • Medium temperature range: -20°C to 140°C
  • Ambient temperature max: 40°C
  • Minimum Efficiency Index (MEI): 0.4
  • Motor Data:
  • Voltage: 3-phase 400 V, 50 Hz
  • Power: 0.25 kW (rated motor power P2)
  • Rated current: 0.69 A
  • Rated speed: 1450 1/min
  • Power factor cos φ: 0.70
  • Efficiency (ηm): 68% at 50%, 72.9% at 75%, 74% at 100% load
  • Motor energy efficiency class: IE2
  • Insulation class: F
  • Protection class: IP55
  • Motor protection: None
  • Dimensions & Weight:
  • External dimensions (W x D x H): 488 x 240 x 320 mm
  • Weight: 36 kg
  • Additional Features: Pressure measuring connections R 1/8 on flange
