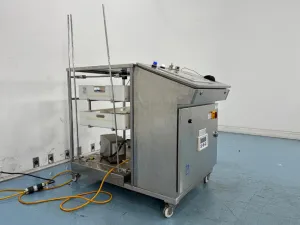

Pall Basic MVP Single Use Tangential Flow Filtration System for Bioprocessing

UsedPallProcess filtersUnited States

Price on request

In stock

Can't find what you're looking for?

Description

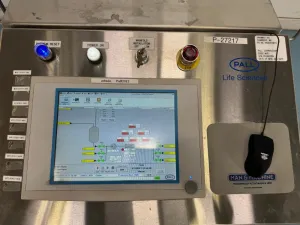

The Pall Basic MVP Single Use TFF system is constructed with stainless steel housing and includes a touchscreen HMI for process control. It is equipped with pressure sensors for pre-filter, mid-filter, and post-filter pressure monitoring. The system supports USB access, Ethernet programming, and Ethernet Plant LAN connectivity. It includes weigh scale inputs and a mixer connection. The control panel is UL listed. Utility specifications: Voltage: 120 VAC, 1 phase, 60 Hz. Maximum current: 20 amps. Fuse ratings vary from 1 amp to 20 amps depending on circuit. The system is designed for use with single-use tangential flow filtration cassettes and includes trays for cassette placement and tubing management.
Technical Data

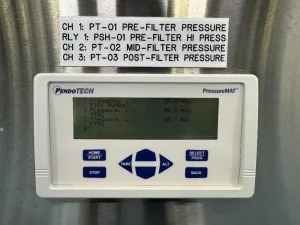

Model: Basic MVP Serial Number: 05.0000359 Voltage: 120 VAC Frequency: 60 Hz Power Consumption: N/A Fuse Rating: 20 amps maximum Software Version: N/A Configuration: Touchscreen HMI, Pressure sensors: PT-01 Pre-filter Pressure, PT-02 Mid-filter Pressure, PT-03 Post-filter Pressure, Relay: PSH-01 Pre-filter High Pressure, USB Access, Ethernet Programming, Ethernet Plant LAN, Weigh Scale inputs WT-01, WT-02, Mixer input SC-04, Control panel UL listed, Acro Associates pressure regulators (Model 935V8806 Rev. 1) Manufacturing Year: 2017
Voltage
120 VAC
Frequency
60 Hz
Power Consumption
N/A
All 14 specifications
  • Ships to NL
  • Response within 1 hour
  • Warranty available. Buy without worry
  • Support from a scientist

Specifications 14

Brands
Pall
New/Used
Used
Description
The Pall Basic MVP Single Use TFF system is constructed with stainless steel housing and includes a touchscreen HMI for process control. It is equipped with pressure sensors for pre-filter, mid-filter, and post-filter pressure monitoring. The system supports USB access, Ethernet programming, and Ethernet Plant LAN connectivity. It includes weigh scale inputs and a mixer connection. The control panel is UL listed. Utility specifications: Voltage: 120 VAC, 1 phase, 60 Hz. Maximum current: 20 amps. Fuse ratings vary from 1 amp to 20 amps depending on circuit. The system is designed for use with single-use tangential flow filtration cassettes and includes trays for cassette placement and tubing management.
Technical Data
Model: Basic MVP Serial Number: 05.0000359 Voltage: 120 VAC Frequency: 60 Hz Power Consumption: N/A Fuse Rating: 20 amps maximum Software Version: N/A Configuration: Touchscreen HMI, Pressure sensors: PT-01 Pre-filter Pressure, PT-02 Mid-filter Pressure, PT-03 Post-filter Pressure, Relay: PSH-01 Pre-filter High Pressure, USB Access, Ethernet Programming, Ethernet Plant LAN, Weigh Scale inputs WT-01, WT-02, Mixer input SC-04, Control panel UL listed, Acro Associates pressure regulators (Model 935V8806 Rev. 1) Manufacturing Year: 2017
Voltage
120 VAC
Frequency
60 Hz
Power Consumption
N/A
Fuse Rating
20 amps maximum
Software Version
N/A
Configuration
Touchscreen HMI, Pressure sensors: PT-01 Pre-filter Pressure, PT-02 Mid-filter Pressure, PT-03 Post-filter Pressure, Relay: PSH-01 Pre-filter High Pressure, USB Access, Ethernet Programming, Ethernet Plant LAN, Weigh Scale inputs WT-01, WT-02, Mixer input SC-04, Control panel UL listed, Acro Associates pressure regulators (Model 935V8806 Rev. 1)
Manufacturing Year
2017
Accessories
Two white trays for tubing and cassette placement, Tubing and connectors, PressureMAT pressure monitor, Acro Associates pressure regulators (3 units), Mouse for HMI interface
Dimensions
N/A
Weight
N/A

Product description

Robust single-use TFF system with integrated pressure monitoring and programmable logic control for bioprocessing.

The Pall Basic MVP Single Use TFF is an advanced tangential flow filtration system specifically designed for single-use bioprocessing applications. It incorporates:

  • Integrated pressure monitoring for real-time process feedback and safety
  • Programmable logic control (PLC) enabling automated operation and enhanced precision
  • A user-friendly HMI touchscreen interface allowing intuitive process control and monitoring
  • Compatibility with biopharmaceutical manufacturing workflows including bioprocessing, molecular diagnostics, and biomanufacturing
  • Ideal for applications such as filtration, concentration, and diafiltration in synthetic biology and gene editing workflows
  • Supports critical downstream processing steps widely adopted in biotechnology and biomedical engineering research

This filtration system is essential for researchers and industry professionals requiring reliable and efficient single-use tangential flow filtration technology, providing scalability and contamination control critical in molecular biology, live-cell processing, and bioprocessing pipelines.
