Cole-Parmer Masterflex L/S 7569-00 Air-Powered Peristaltic Pump with Pump Head

Price on request

In stock

Can't find what you're looking for?

MPN

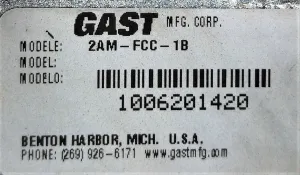

7569-00, 77200-62 and 2AM-FCC-1B
Condition Description
IN GOOD WORKING ORDER
Speed Range (rpm)
60 - 600
Electrical Requirements
.
Electrical Certification / Approval
.
All 11 specifications
  • Ships to NL
  • Response within 1 hour
  • Warranty available. Buy without worry
  • Support from a scientist

Specifications 11

Brands
Cole-Parmer
New/Used
Used
MPN
7569-00, 77200-62 and 2AM-FCC-1B
Condition Description
IN GOOD WORKING ORDER
Speed Range (rpm)
60 - 600
Electrical Requirements
.
Electrical Certification / Approval
.
Dimensions
23"W x 14"D x 15"H
Weight (lbs)
27
Country/region of manufacture
United States
Custom Label
I1

Product description

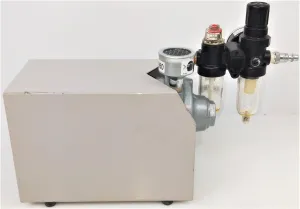

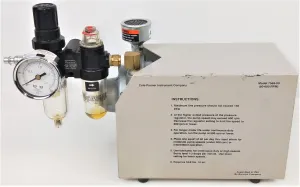

Air-powered peristaltic pump with Easy Load II head; 60-600 rpm, 3.6-3400 mL/min flow rate

  • Pump Drive: Masterflex L/S 7569-00 air-powered with Easy Load II pump head model 77200-62 (compatible with L/S 15, 24, 35, 36 tubing)
  • Output Speed: 60 to 600 rpm, controlled via analog variable speed
  • Speed Regulation: ±15 rpm (60–150 rpm), ±20 rpm (150–600 rpm), with ±10% speed control accuracy
  • Maximum Load: 180 oz•in (13 kg•cm)
  • Flow Rate Range: Minimum 3.6 mL/min; Maximum 3400 mL/min
  • Pump Heads: Accepts up to 2 heads; this unit includes one Easy Load II pump head
  • Compatible Pump Heads: Standard, Easy-Load, Easy-Load II, Quick Load, High Performance, Cartridge, Multichannel, PTFE Tubing, PTFE Diaphragm
  • Power Input: 10 cfm (0.28 m³/min) at 150 psig (10.3 bar)
  • Power Output: 3/4 hp (560 W)
  • Operating Temperature: 32˚ to 104˚F (0˚ to 40˚C)
  • Storage Temperature: 14˚ to 149˚F (–10˚ to 65˚C)
  • Humidity Tolerance: 10% to 90% non-condensing
  • Chemical Resistance: Exposed components made of painted cold rolled steel (CRS), brass, aluminum, and plastic
  • Enclosure Rating: Not applicable
  • Altitude Range: Suitable for use below 2000 meters elevation
