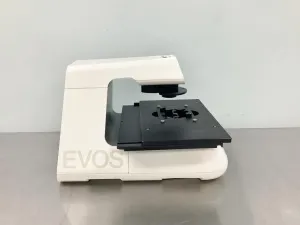

Thermo Fisher EVOS M7000 Automated Digital Inverted Fluorescence Microscope

The Thermo Fisher EVOS M7000 Imaging System is a cutting-edge *automated digital inverted microscope* engineered for advanced cell imaging and tissue analysis in biotechnology, molecular diagnostics, and biomedical research. It integrates multiple imaging modalities including fluorescence, brightfield, color brightfield, and phase contrast to accommodate fluorescence analysis and live-cell imaging applications.

Key technical features include:

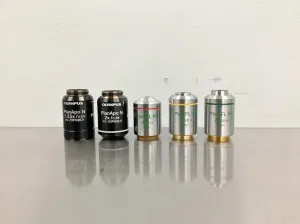

• 5-position automated objective turret supporting over 30 long working distance (LWD) and coverslip-corrected objectives, with magnifications from 1.25x to 100x.

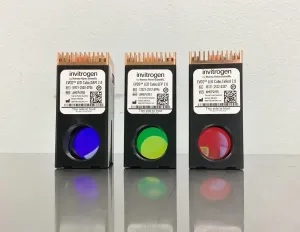

• 5-position illumination chamber accommodating up to four fluorescence LED light cubes plus brightfield; includes motorized fluorescent LED cube interchange with LEDs like DAPI, GFP, RFP, Texas Red™, and Cy5, vital for multi-color fluorescence imaging.
• High-sensitivity 3.2 MP monochrome and color CMOS cameras enabling 16-bit RAW monochrome and 8-bit color image capture, ideal for high-dynamic-range microscopy workflows.

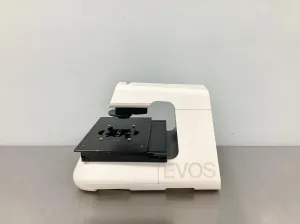

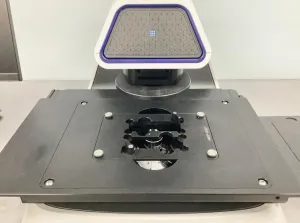

• Automated X/Y stage offering 120 × 80 mm travel with sub-micron resolution and motorized Z-axis focus control with 0.15 μm precision, essential for Z-stacking, 3D imaging, and multiwell plate scanning.

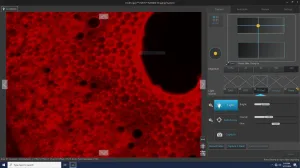

• Advanced imaging functions: *area scanning*, tile stitching, montage capture, time-lapse imaging, movie capture, and 2D image deconvolution to enhance signal-to-noise ratio and image quality for quantitative fluorescence studies.
• Compatible sample holders for diverse vessel types including hemocytometers, multiwell plates (6-, 12-, 24-, 48-, 96-, and 384-well), petri dishes, and T-flasks, making it suitable for cell culture assays, bioprocessing, and synthetic biology workflows.
• The system is designed with inferiority-corrected optics and supports RMS-threaded objectives with a 45 mm parfocal distance, enabling precise multi-wavelength imaging required in gene editing and molecular cloning research.
• High-capacity 128 GB DDR5 RAM and 4 TB SSHD storage facilitate large data handling typical in biopharmaceutical imaging pipelines.

This instrument is widely adopted in biomedical engineering, live-cell and fluorescence imaging, and molecular biology research, particularly valuable for researchers focused on cellular assays, bioprocess monitoring, and synthetic biology experimentation. It offers a robust microscopy platform that supports critical biotechnological applications such as gene expression analysis, immunofluorescence, and drug discovery screening.

Overall, the Thermo Fisher EVOS M7000 system is an essential tool for modern laboratories requiring automated, high-resolution fluorescence and brightfield imaging combined with precision stage control and multiplexed analysis capabilities.
