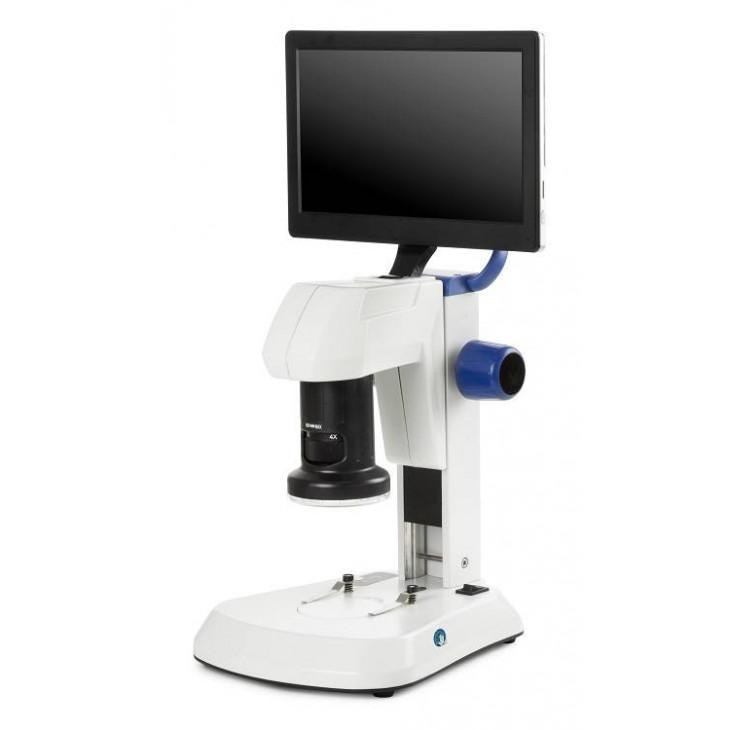

EduBlue LCD ED.3000 Digital Stereo Microscope with 2MP CMOS Camera and 9" LCD Display

The EduBlue LCD ED.3000 is a digital stereo microscope optimized for educational and beginner laboratory applications, integrating advanced imaging and illumination features critical in biotechnology and molecular diagnostics workflows. Key technical specifications include:

• Optical Zoom: Single central zoom objective offering *1 to 4x* magnification with discrete stops at 1x, 1.5x, 2x, 3x, and 5x; supplemented by a digital zoom up to 10x via embedded software. The working distance is maintained at *91 mm*, facilitating comfortable sample manipulation.

• Illumination System: Dual LED light sources include a 21-LED incident ring light (5,500 K) with *five adjustable intensity levels* and a 7-LED transmitted base light (5,785 K) with *two intensity settings*, providing versatile illumination tailored for live-cell imaging, fluorescence analysis, and detailed surface observation crucial in bioprocessing research.

• Imaging and Display: Built-in 2MP High-Speed CMOS camera paired with a *9-inch integrated LCD* screen enables direct visualization and real-time observation. Captured images (.jpg) and videos (.avi) are stored on an SD card via a user-friendly interface controlled by an integrated mouse, supporting up to *16 GB* of removable storage—ideal for documenting synthetic biology experiments and biomanufacturing quality control.

• Mechanical Design: The optical zoom and lighting assembly are mounted on a rack-and-pinion system with a robust metal stand (30 x 180 mm), ensuring precise focus and stability during microscopy tasks.

• Software Features: Embedded software supports image capture, freeze frame, automatic white balance, auto exposure, file management, grid overlay, and advanced camera controls including exposure time, gain, saturation, contrast, sharpness, and HDR functionality. This provides enhanced imaging flexibility for applications in molecular cloning workflows and clinical diagnostics.

• Included Accessories: The package includes a 16 GB SD memory card, black and white calibration plates, a transparent glass specimen plate, and two external power adapters (*12V / 3.3A*), facilitating immediate setup and operation.

This digital stereomicroscope is widely used in educational settings but also serves biomedical engineering and molecular biology researchers requiring precise stereoscopic visualization with integrated imaging and illumination controls. Its combination of optical zoom, high-quality CMOS imaging, and adjustable LED illumination makes it *critical in biopharmaceutical production pipelines* and *widely adopted in synthetic biology research*.
