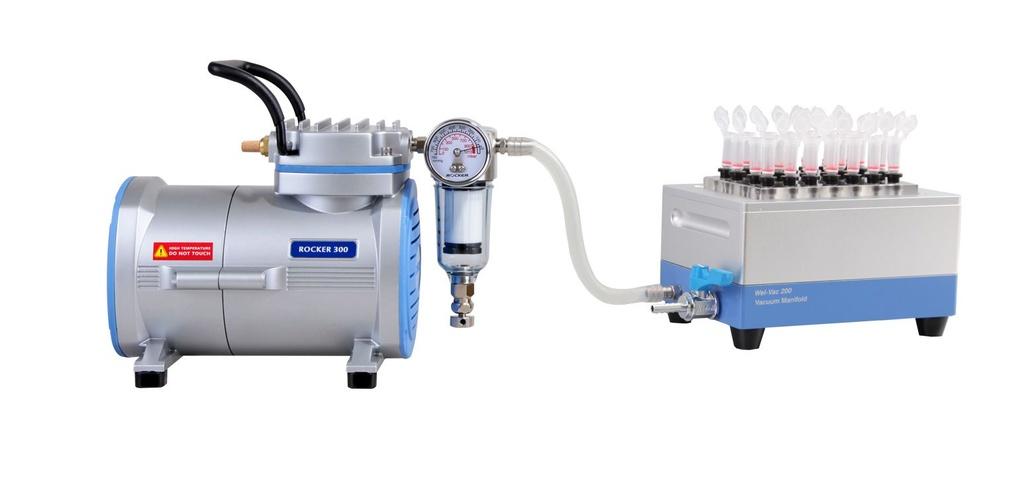

WelVac 210 Microplate Vacuum Manifold System 220V for DNA and RNA Purification

The WelVac 210 Microplate Vacuum Manifold System is engineered for efficient purification workflows critical in molecular diagnostics, synthetic biology, and bioprocessing research. This system replaces traditional centrifugation by using a vacuum source for rapid, continuous separation of nucleic acids including plasmid DNA, ssDNA, RNA, genomic DNA, and viral nucleic acids.

Key technical features include:

• Compatibility with 96-well microplates, micro centrifuge tubes (24 holes), and large-volume centrifuge tubes (8 holes) via a uniquely designed column adapter board and luer connectors, facilitating diverse applications in biotechnology and biomedical engineering.
• Dimensions of the manifold: internal 12.8 x 8.6 x 7.3 cm; external 23.2 x 12.4 x 10.2 cm; net weight 2.6 kg.
• Constructed of durable materials: aluminum vacuum manifold, PC column adapter board, and silicone luer connectors optimized for contamination-free filtration.
• Operates with Rocker 300 oil-free vacuum pump (220V, 50Hz) providing max vacuum of 105 mbar and max flow of 20 L/min, ensuring gentle but effective filtration essential for sensitive nucleic acid samples.
• Certified for lab safety and compliance with CE, CSA, RoHS standards, including IP30 protection.

This system is widely adopted in molecular cloning workflows, PCR clean-up, and gel purification, offering time-saving advantages by eliminating spin steps and reducing sample handling. Its vacuum filtration mechanism is critical in biopharmaceutical production pipelines and synthetic biology research where sample integrity and throughput are paramount.

The WelVac 210 is an essential laboratory vacuum device for research professionals seeking reliable, versatile, and efficient nucleic acid purification solutions in biotechnology and clinical diagnostics.
