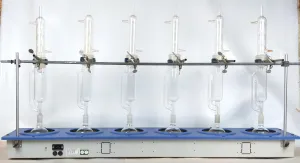

Electrothermal EME6 6-Place Extraction Mantle with Soxhlet Glassware Set 500mL

The Electrothermal EME6 0500/CEBX1 Multi-Place Extraction Mantle features a 6-position heating rack designed specifically for 500mL round-bottom flasks used in extraction workflows such as Soxhlet extraction. Each position is equipped with an independent quartz heating element embedded in a thermally insulated cartridge, providing reliable heat transfer and easy cartridge replacement. The solid-state electronic controls allow precise temperature regulation up to 450°C with individual control dials, on/off switches, and indicator neon lights per position, ensuring safety and efficiency in simultaneous multi-sample heating applications.

This unit’s robust design incorporates a powder-coated aluminum housing and a polypropylene top cover for enhanced chemical resistance and ease of cleaning, suited to demanding laboratory environments typically encountered in molecular diagnostics and bioprocessing laboratories. The heating elements are safely isolated from control electronics by a ventilated air space, while an earth (ground) screen adds an additional safety layer against electrical hazards.

Included with this system are 6 sets of Kimble 24005-50 KIMAX Soxhlet extraction apparatuses (or equivalents), featuring:

• Soxhlet condensers with 55/50 standard taper joints
• Extraction tubes with 24/40 taper joints connecting to the flask
• Approximate flask capacity of 500mL measured to the flask neck base
• Condenser hose ports compatible with 5/16” ID flexible tubing
• Paper thimble size compatibility: 45mm x 123mm (not included)

This configuration is essential for laboratories specializing in biotechnology, synthetic biology, and molecular cloning workflows, facilitating efficient and precise solvent extractions with independent temperature control critical in biopharmaceutical production pipelines and environmental analysis.

Key Features:

• Six independent heating positions with precise solid-state controls for simultaneous extraction
• Maximum element temperature of 450°C for a wide range of solvents and boiling points
• Quartz heating elements in easily replaceable cartridges for extended service life
• Chemical-resistant polypropylene top and powder-coated aluminum surfaces
• Complete set with 6 Soxhlet extraction assemblies for streamlined sample processing
• Compatible with standard laboratory glassware and accessories common in analytical chemistry and biotechnology research

Overall, the Electrothermal EME6 6-Place Extraction Mantle with integrated Soxhlet glassware offers a versatile, safe, and efficient solution for laboratories requiring multi-sample extractions, ideal for biomedical engineering, molecular diagnostics, and advanced bioprocessing applications.
