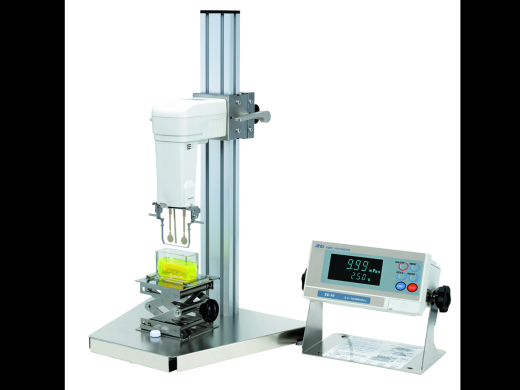

A&D Viscometer SV-100 with Vibrating Tuning Fork Method and 100,000 cP Capacity

The A&D Viscometer SV-100 utilizes a *vibrating tuning fork measurement method* enabling precise viscosity measurement of non-Newtonian and volatile samples with minimal mechanical and thermal impact.

• Measurement range: 1,000 to 100,000 mPa·s (1–100 Pa·s)
• Viscosity detection: extends to very low viscosities, down to one-third of water's viscosity
• Temperature measurement range: 0°C to 160°C
• Precision: Repeatability of ±1% of displayed value
• Sample size: Small volumes accommodated with cups of 35 ml, 13 ml, and 10 ml
• Measurement speed: First result within 15 seconds; continuous real-time refresh possible
• Sample compatibility: Suitable for foaming samples, flowing or agitated samples, and measurements directly in containers like beakers or product packages
• Calibration: User-adjustable calibration (1 or 2 points) with simplified automated calibration
• Software: Includes WinCT-Viscosity for data acquisition, curve display, and archiving (viscosity vs temperature or time)
• Interface: RS-232C cable included for PC connectivity
• Accessories: 4 polycarbonate 35 ml sample cups included
• Optional temperature control: Water jacket option (AX-SV-37) or alternative methods

This instrument facilitates fast, high-accuracy viscosity testing with low sample disturbance, amenable to quality control and research applications involving complex fluids.
