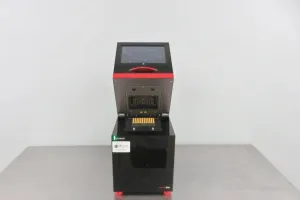

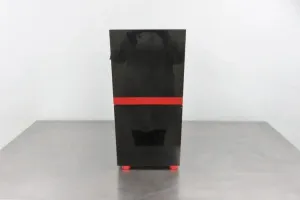

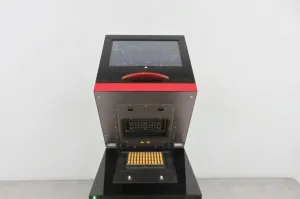

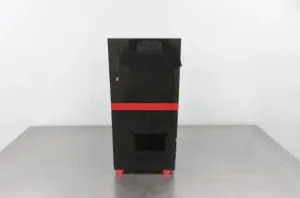

Analytik Jena qTower3 Touch Real-Time PCR System with 96-Well Block and Multiplex Fluorescence Detection

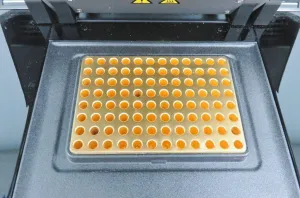

The Analytik Jena qTower3 Touch is a high-precision real-time PCR system optimized for molecular diagnostics and quantitative gene expression analysis in biotechnology and clinical research. Equipped with a 96-well block compatible with standard microplates, it accommodates reaction volumes from 10 µl to 80 µl, supporting low-volume assays.

Key technical features include:

• Fast thermal ramp rates: Heating up to 8.0°C/second and cooling up to 6.0°C/second for rapid PCR cycling and reduced run times essential in bioprocessing workflows.
• Tight temperature uniformity of ±0.15 °C at 55 °C across all wells ensures reproducible amplification critical in molecular cloning and synthetic biology research.
• Multiplex qPCR capability with up to 6 fluorescence detection channels enabled via uniform RGBW LED illumination and fiber-optic scanning technology, facilitating complex genetic analyses and pathogen detection without proprietary consumables.

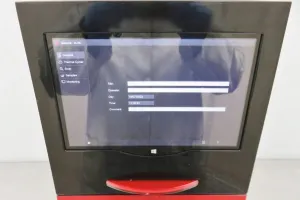

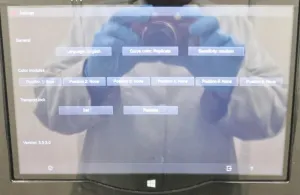

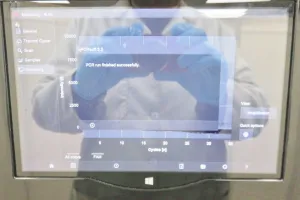

• Integrated 10-inch touchscreen for standalone operation, with optional external control through qTower3 software for advanced workflow integration and data management in clinical diagnostics laboratories.

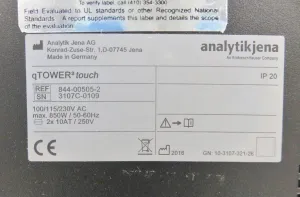

• Dimensions: 11x11x23 inches, weight: 62 lbs; electrical requirements 100-230V, 50/60Hz, 850W max.

Widely used in applications such as gene expression profiling, genotyping, and quantitative pathogen detection, the qTower3 Touch is critical in biopharmaceutical production pipelines and synthetic biology workflows. Its open chemistry compatibility supports a broad range of assays, making it popular among molecular biology researchers and biotechnologists.

This system is fully validated for thermal and optical performance, ensuring reliability for high-throughput and routine testing environments. It represents an essential instrument for laboratories engaged in biotechnology, molecular diagnostics, and biomedical engineering research.
