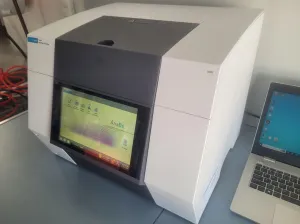

Agilent AriaDx K8930AA Real-Time PCR Thermal Cycler with 8-Dye Optical Detection

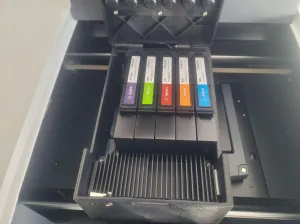

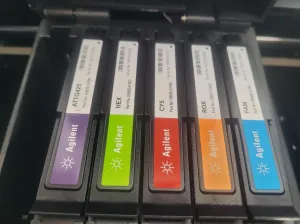

The Agilent AriaDx K8930AA is a sophisticated real-time PCR thermal cycler designed for precise molecular biology and biotechnology applications such as gene editing, molecular diagnostics, and synthetic biology research. Equipped with an 8-dye specific LED excitation source per optical module and 8 photodiode detectors, it supports multiplex fluorescence detection compatible with standard chemistries like SYBR Green and TaqMan.

Key technical features include:

• Thermal system with 6 Peltier modules enabling a temperature range from 25.0 to 99.9 °C, supporting heating rates of 6.0 °C/sec and cooling rates between 2.5 and 3.0 °C/sec for rapid cycling performance.
• Thermal accuracy of ±0.2 °C and uniformity of ±0.4 °C, ensuring reliable amplification consistency critical in biopharmaceutical production pipelines and molecular cloning workflows.

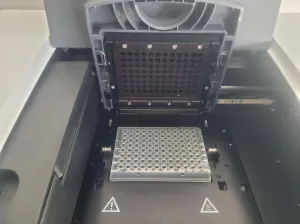

• Reaction volume compatibility from 10 µl to 30 µl, accommodating standard 96-well plates, strip tubes, and 0.2 ml tubes for versatile assay formats.
• Data acquisition achieved in under 3 seconds for all fluorescence channels, facilitating high-throughput quantitative PCR analysis.
• Operates in controlled environments between 20–30°C with 20–80% humidity (non-condensing), powered by standard 100–240 VAC, 50/60 Hz electrical input.

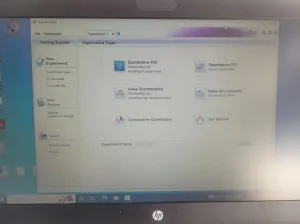

This instrument comes with an installed computer running the proprietary ARIADX software for data analysis and thermal cycling protocol management, supporting advanced fluorescence analysis widely used in clinical diagnostics and biotechnology. Note that an Agilent technician is required for recommissioning due to a reported "Block contamination error," although internal test procedures verify full functionality otherwise.

This real-time PCR instrument is an essential tool in biotechnology research domains such as bioprocessing, molecular diagnostics, and biomanufacturing, offering precise thermal control and multiplex detection capabilities vital for synthetic biology and live-cell gene expression quantification.
