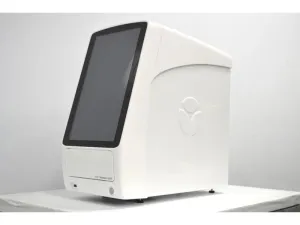

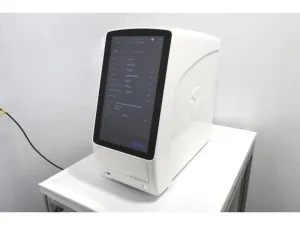

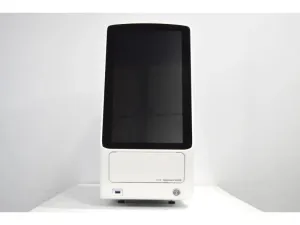

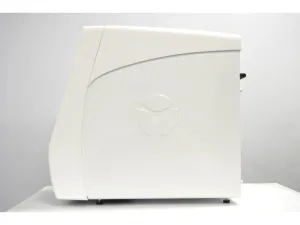

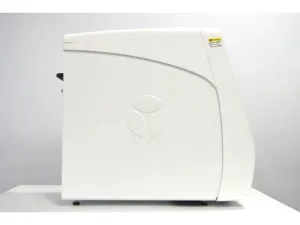

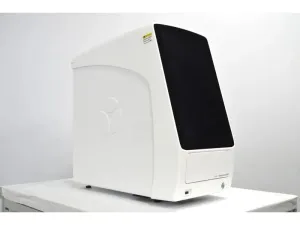

Olink Signature Q100 Benchtop Protein Analyzer with Multiplex Immunoassay Capability

The Olink Signature Q100 Protein Analyzer is a precision benchtop instrument designed for high-sensitivity multiplex protein detection using proximity extension assay (PEA) technology, optimized for biomarker discovery, immuno-oncology, and clinical research applications in biotechnology and molecular diagnostics.

Key technical features include:

• Thermal control via peltier elements with a temperature range of 4–99°C, ramp rates up to 5.5°C/sec for both heating and cooling, ensuring rapid and precise sample processing.
• Fluorescence excitation/emission wavelengths of 475/525 nm and 575/630 nm respectively, enabling multiplex fluorescence detection for complex protein signature analyses.

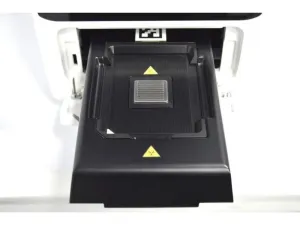

• Compatible chips: Olink 96.96, 48.48, and 24.192 chips supporting protein expression panels, facilitating customizable multiplex immunoassays tailored to specific research needs.

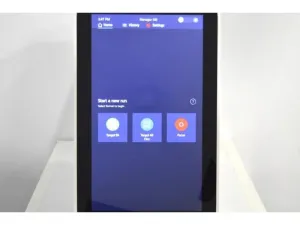

• Supported assay panels: Target 96 (up to 92 proteins across 11 targeted panels), Target 48 Flex (up to 45 validated biomarkers across 3 panels), and Focus panels (up to 21 proteins with pre-validated assays).
• Small sample volume requirement: Operates with 1 µL of plasma, serum, or similar biological fluids, ideal for limited sample availability in molecular biology and translational medicine.

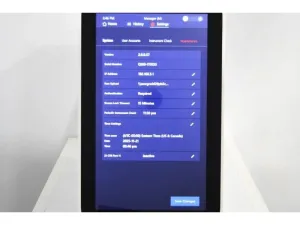

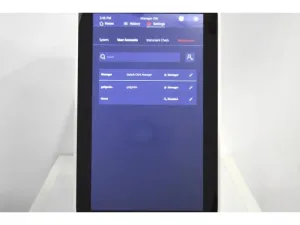

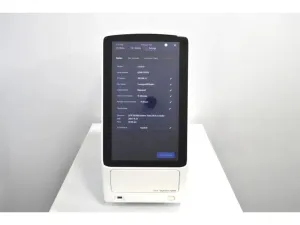

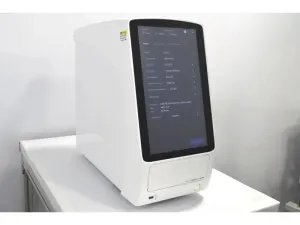

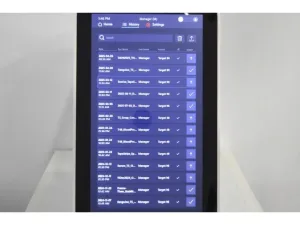

• Integrated system design featuring fluidics automation, optical detection, and touchscreen interface to streamline workflows in synthetic biology and bioprocessing laboratories.

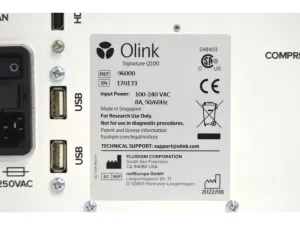

• Power and size: Operates on 100–240 V, 50/60 Hz, 8 A; dimensions 60 cm (W) × 27 cm (D) × 55 cm (H), providing a compact footprint suitable for biotechnology and clinical diagnostics labs.

This instrument is essential for multiplex protein analysis workflows in fields such as immuno-oncology biomarker validation, inflammation profiling, and drug development, offering reproducible data quality control via NPX Signature software. It supports seamless integration into biomanufacturing and molecular diagnostics pipelines where high throughput and precision are critical.

Note: Operation requires Olink assay panels, reagents, and consumables, sold separately. Optional accessories include liquid handlers, PCR thermal cyclers (ODTC), and SPT Dragon Fly for precise low-volume dispensing, enhancing automation capabilities.

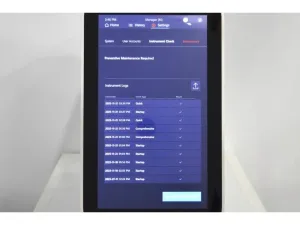

The Olink Signature Q100 system includes onboard quality checks and a user-friendly interface, making it popular among researchers conducting advanced protein signature analysis and molecular cloning studies. It is widely adopted in biotechnology research settings where multiplexed protein quantification is critical for understanding complex biological processes and supporting synthetic biology innovations.
