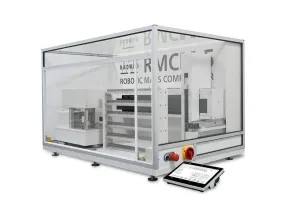

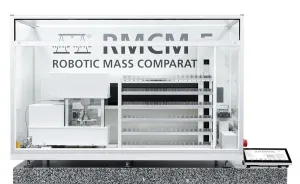

Radwag RMCM 10.5Y Robotic Mass Comparator

RMCM-10 robotic mass comparator guarantees the utmost repeatability within 1 mg - 10 g range with the readability of 0.1 µg.

Function of Automatic Mass Standard Dissemination

RMCM-5 mass comparator facilitates a complete dissemination process. This is possible thanks to use of the intermediate mass standard magazine, which significantly shortens comparison duration and reduces wear and tear of the transport robot.

Real-Time Measurement of Ambient Conditions The RMCM-10 mass comparator comes standard with a top-class thermo-hygro-barometer enabling real-time control of ambient conditions in three locations. The characteristic feature of the RMCM-100 is high readability of pressure, 0.001 hPa, humidity, 0.01 %, and temperature, 0.001 °C. Reliability of ambient conditions measurement carried out using the thermo-hygro-barometer is confirmed by a calibration certificate.

A Mass Comparator and a Robotic Transport System in One Compact Device

This combination results with:

reduction of air drafts and vibrations from a robotic system in the course of comparison,

minimised risk of human error,

easier maintaining of stable environmental conditions inside the weighing chamber (thanks to a compact device dimensions).

Optional Equipment

Additional equipment includes a video camera enabling remote preview of comparison process in real time (Internet access required), and RMCS software. The RMCS allows unrestricted monitoring of the comparison process.

Remote, real-time preview of comparison process in real time is possible thanks to a video camera.

Universal magazine insert shape

Mass standard magazine features 120 positions. The RMCM-10 enables comparison of weights of all shapes compliant with OIML recommendations, using just one universal insert.
