Pall iCELLis 500+ Bioreactor Control System for Scalable Cell Culture

UsedPallFermenters / bioreactorsUnited States

Price on request

In stock

Can't find what you're looking for?

Description

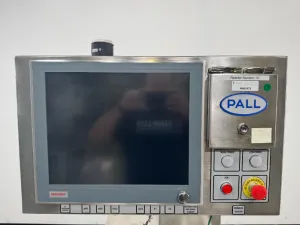

The Pall iCELLis 500+ Control System is designed for scalable cell culture bioreactor control. It operates on 208/230 VAC with 50/60 Hz frequency. The system includes a touchscreen interface for process monitoring and control. It features a Watson Marlow pump module (NEMA 4X, IP66 rated) integrated for fluid handling. The system is equipped with an emergency stop button and power control switches. The control system supports 1 phase on 230 VAC or 2 phases on 208 VAC with a 20A full load current under 208 VAC and 32A input breaker. The system weight is approximately 650 kg.
Technical Data
Model: iCELLis 500+ Serial Number: ICL500+_A_047 Voltage: 208/230 VAC Frequency: 50/60 Hz Power Consumption: 250 VA (Watson Marlow Pump), 1.9 kW (LAUDA RP 240 B chiller) Fuse Rating: 32A input breaker Software Version: N/A Configuration: Integrated touchscreen control panel, Watson Marlow Pumps N Module - Standard (NEMA 4X, IP66), Emergency stop and power control switches, LAUDA RP 240 B chiller unit Manufacturing Year: 2019
Voltage
208/230 VAC
Frequency
50/60 Hz
Power Consumption
250 VA (Watson Marlow Pump), 1.9 kW (LAUDA RP 240 B chiller)
All 14 specifications
  • Ships to NL
  • Response within 1 hour
  • Warranty available. Buy without worry
  • Support from a scientist

Specifications 14

Brands
Pall
New/Used
Used
Description
The Pall iCELLis 500+ Control System is designed for scalable cell culture bioreactor control. It operates on 208/230 VAC with 50/60 Hz frequency. The system includes a touchscreen interface for process monitoring and control. It features a Watson Marlow pump module (NEMA 4X, IP66 rated) integrated for fluid handling. The system is equipped with an emergency stop button and power control switches. The control system supports 1 phase on 230 VAC or 2 phases on 208 VAC with a 20A full load current under 208 VAC and 32A input breaker. The system weight is approximately 650 kg.
Technical Data
Model: iCELLis 500+ Serial Number: ICL500+_A_047 Voltage: 208/230 VAC Frequency: 50/60 Hz Power Consumption: 250 VA (Watson Marlow Pump), 1.9 kW (LAUDA RP 240 B chiller) Fuse Rating: 32A input breaker Software Version: N/A Configuration: Integrated touchscreen control panel, Watson Marlow Pumps N Module - Standard (NEMA 4X, IP66), Emergency stop and power control switches, LAUDA RP 240 B chiller unit Manufacturing Year: 2019
Voltage
208/230 VAC
Frequency
50/60 Hz
Power Consumption
250 VA (Watson Marlow Pump), 1.9 kW (LAUDA RP 240 B chiller)
Fuse Rating
32A input breaker
Software Version
N/A
Configuration
Integrated touchscreen control panel, Watson Marlow Pumps N Module - Standard (NEMA 4X, IP66), Emergency stop and power control switches, LAUDA RP 240 B chiller unit
Manufacturing Year
2019
Accessories
Watson Marlow Pumps N Module - Standard, LAUDA RP 240 B chiller unit
Dimensions
N/A
Weight
650 kg

Product description

Advanced control system with touchscreen interface for scalable cell culture bioprocessing and precise parameter management.

The Pall iCELLis 500+ Control System is a specialized bioreactor control platform designed to manage scalable cell culture processes essential for biotechnology and bioprocessing applications. Key features include:

  • Integrated touchscreen interface for intuitive monitoring and adjustments
  • Precise control modules managing parameters such as pH, dissolved oxygen, temperature, and agitation
  • Engineered for high reliability and stability in continuous bioprocessing environments
  • Compatible with scalable fixed-bed bioreactor systems widely adopted in synthetic biology, molecular diagnostics, and biomanufacturing workflows
  • Supports real-time data acquisition and process control critical in gene editing and cell therapy production pipelines

This control system is essential for researchers and professionals in bioreactor-based cell cultivation, enabling optimized conditions for mammalian and microbial cell growth. Its application spans bioprocess development, process scale-up, and production of biologics, making it a critical tool in modern biotechnology and pharmaceutical manufacturing.
